小炒肉

目录

kubernetes 1.13.1

小炒肉 收录于 kubernetes
   约 10315 字   预计阅读 21 分钟    次阅读

Update kubernetes 1.13.1

CHANGELOG

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

0. 创建 deploymoent DaemonSet 的apiVersion: extensions/v1beta1
    更新为 apiVersion: apps/v1, 否则日志抛出错误:
        watch of *v1beta1.Event ended with: The resourceVersion for the provided watch is too old.

1. 更新一个 CVE-2018-1002105 安全问题，必须更新(v1.10.11，v1.11.5和v1.12.3)子版本更新

2. etcd 版本 更新为 v3.2.24 , 删除 etcd v2 支持, kube-apiserver 配置 --storage-backend=etcd3

3. kube-apiserver 中 标签:
    --service-account-api-audiences 更改为 --api-audiences
    --experimental-encryption-provider-config 更改为 --encryption-provider-config

    --encryption-provider-config 标签引用的配置文件中:
        kind: EncryptionConfig 更改为 kind: EncryptionConfiguration
        apiVersion: v1 更改为 apiVersion: apiserver.config.k8s.io/v1

kubernetes 1.13.1

环境说明

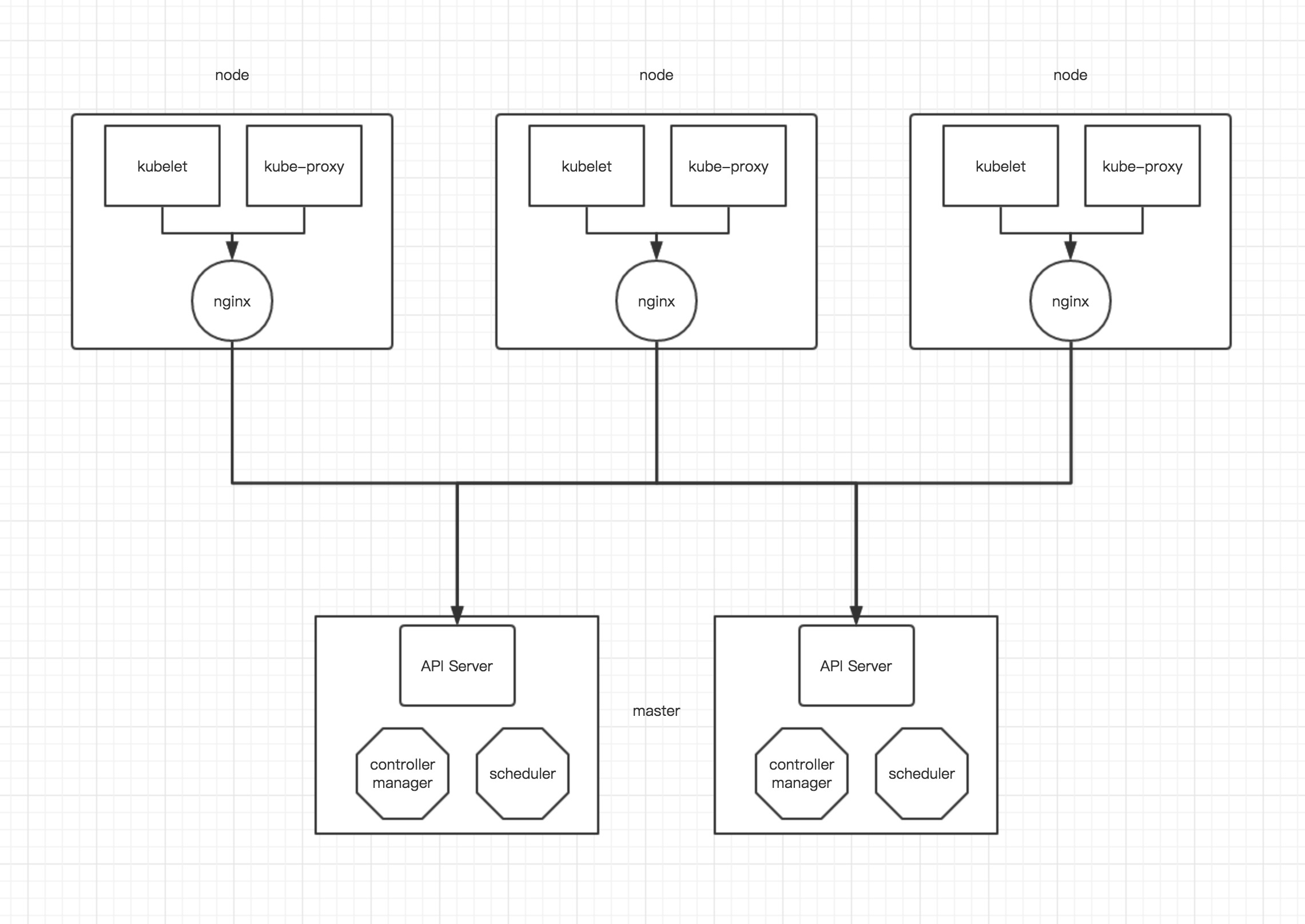

基于 二进制 文件部署 本地化 kube-apiserver, kube-controller-manager , kube-scheduler 我这边配置 既是 master 也是 nodes

这里配置2个Master 1个node, Master-64 只做 Master, Master-65 既是 Master 也是 Node, node-66 只做单纯 Node

1
2
3

kubernetes-64: 172.16.1.64
kubernetes-65: 172.16.1.65
kubernetes-66: 172.16.1.66

初始化环境

1
2
3
4
5

hostnamectl --static set-hostname hostname

kubernetes-64: 172.16.1.64
kubernetes-65: 172.16.1.65
kubernetes-66: 172.16.1.66

1
2
3
4
5
6
7

#编辑 /etc/hosts 文件，配置hostname 通信

vi /etc/hosts

172.16.1.64  kubernetes-64
172.16.1.65  kubernetes-65
172.16.1.66  kubernetes-66

创建 验证

这里使用 CloudFlare 的 PKI 工具集 cfssl 来生成 Certificate Authority (CA) 证书和秘钥文件。

安装 cfssl

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

mkdir -p /opt/local/cfssl

cd /opt/local/cfssl

wget https://pkg.cfssl.org/R1.2/cfssl_linux-amd64
mv cfssl_linux-amd64 cfssl

wget https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64
mv cfssljson_linux-amd64 cfssljson

wget https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd64
mv cfssl-certinfo_linux-amd64 cfssl-certinfo

chmod +x *

创建 CA 证书配置

1
2
3
4

mkdir /opt/ssl

cd /opt/ssl


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

# config.json 文件

vi  config.json


{
  "signing": {
    "default": {
      "expiry": "87600h"
    },
    "profiles": {
      "kubernetes": {
        "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ],
        "expiry": "87600h"
      }
    }
  }
}


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

# csr.json 文件

vi csr.json

{
  "CN": "kubernetes",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "ShenZhen",
      "L": "ShenZhen",
      "O": "k8s",
      "OU": "System"
    }
  ]
}

生成 CA 证书和私钥

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15


cd /opt/ssl/

/opt/local/cfssl/cfssl gencert -initca csr.json | \
/opt/local/cfssl/cfssljson -bare ca


[root@kubernetes-64 ssl]# ls -lt
总用量 20
-rw-r--r-- 1 root root 1005 7月   3 17:26 ca.csr
-rw------- 1 root root 1675 7月   3 17:26 ca-key.pem
-rw-r--r-- 1 root root 1363 7月   3 17:26 ca.pem
-rw-r--r-- 1 root root  210 7月   3 17:24 csr.json
-rw-r--r-- 1 root root  292 7月   3 17:23 config.json

分发证书

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

# 创建证书目录
mkdir -p /etc/kubernetes/ssl

# 拷贝所有文件到目录下
cp *.pem /etc/kubernetes/ssl
cp ca.csr /etc/kubernetes/ssl

# 这里要将文件拷贝到所有的k8s 机器上

scp *.pem *.csr 172.16.1.65:/etc/kubernetes/ssl/

scp *.pem *.csr 172.16.1.66:/etc/kubernetes/ssl/

安装 docker

官方最新版本 docker 为 18.06.1 , 官方验证最高版本支持到 18.06.0

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

# 导入 yum 源

# 安装 yum-config-manager

yum -y install yum-utils

# 导入
yum-config-manager \
    --add-repo \
    https://download.docker.com/linux/centos/docker-ce.repo


# 更新 repo
yum makecache

# 查看yum 版本

yum list docker-ce.x86_64  --showduplicates |sort -r



# 安装指定版本 docker-ce 18.06 被 docker-ce-selinux 依赖
# 不能直接yum 安装 docker-ce-selinux

wget https://download.docker.com/linux/centos/7/x86_64/stable/\
Packages/docker-ce-18.06.0.ce-3.el7.x86_64.rpm


rpm -ivh docker-ce-18.06.0.ce-3.el7.x86_64.rpm


yum -y install docker-ce-18.06.0.ce


# 查看安装

docker version
Client:
 Version:           18.06.0-ce
 API version:       1.38
 Go version:        go1.10.3
 Git commit:        0ffa825
 Built:             Wed Jul 18 19:08:18 2018
 OS/Arch:           linux/amd64

更改docker 配置

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

# 添加配置

vi /etc/systemd/system/docker.service



[Unit]
Description=Docker Application Container Engine
Documentation=http://docs.docker.com
After=network.target docker-storage-setup.service
Wants=docker-storage-setup.service

[Service]
Type=notify
Environment=GOTRACEBACK=crash
ExecReload=/bin/kill -s HUP $MAINPID
Delegate=yes
KillMode=process
ExecStart=/usr/bin/dockerd \
          $DOCKER_OPTS \
          $DOCKER_STORAGE_OPTIONS \
          $DOCKER_NETWORK_OPTIONS \
          $DOCKER_DNS_OPTIONS \
          $INSECURE_REGISTRY
LimitNOFILE=1048576
LimitNPROC=1048576
LimitCORE=infinity
TimeoutStartSec=1min
Restart=on-abnormal

[Install]
WantedBy=multi-user.target


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

# 修改其他配置


# 低版本内核， kernel 3.10.x  配置使用 overlay2


vi /etc/docker/daemon.json

{
  "storage-driver": "overlay2",
  "storage-opts": [
    "overlay2.override_kernel_check=true"
  ]
}




mkdir -p /etc/systemd/system/docker.service.d/


vi /etc/systemd/system/docker.service.d/docker-options.conf

# 添加如下 :   (注意 environment 必须在同一行，如果出现换行会无法加载)

# docker 版本 17.03.2 之前配置为 --graph=/opt/docker

# docker 版本 17.04.x 之后配置为 --data-root=/opt/docker


[Service]
Environment="DOCKER_OPTS=--insecure-registry=10.254.0.0/16 \
    --registry-mirror=http://b438f72b.m.daocloud.io \
    --data-root=/opt/docker --log-opt max-size=50m --log-opt max-file=5"




vi /etc/systemd/system/docker.service.d/docker-dns.conf


# 添加如下 :

[Service]
Environment="DOCKER_DNS_OPTIONS=\
    --dns 10.254.0.2 --dns 114.114.114.114 \
    --dns-search default.svc.cluster.local \
    --dns-search svc.cluster.local \
    --dns-opt ndots:2 --dns-opt timeout:2 --dns-opt attempts:2"


1
2
3
4
5

# 重新读取配置，启动 docker
systemctl daemon-reload
systemctl start docker
systemctl enable docker


1
2
3

# 如果报错 请使用
journalctl -f -t docker  和 journalctl -u docker 来定位问题

etcd 集群

etcd 是k8s集群最重要的组件， etcd 挂了，集群就挂了， 1.13.1 etcd 支持最新版本为 v3.2.24

安装 etcd

官方地址 https://github.com/coreos/etcd/releases

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

# 下载 二进制文件

wget https://github.com/coreos/etcd/releases/download/v3.2.24/\
etcd-v3.2.24-linux-amd64.tar.gz

tar zxvf etcd-v3.2.24-linux-amd64.tar.gz

cd etcd-v3.2.24-linux-amd64

mv etcd  etcdctl /usr/bin/

创建 etcd 证书

etcd 证书这里，默认配置三个，后续如果需要增加，更多的 etcd 节点 这里的认证IP 请多预留几个，以备后续添加能通过认证，不需要重新签发

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

cd /opt/ssl/

vi etcd-csr.json

{
  "CN": "etcd",
  "hosts": [
    "127.0.0.1",
    "172.16.1.64",
    "172.16.1.65",
    "172.16.1.66"
  ],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "ShenZhen",
      "L": "ShenZhen",
      "O": "k8s",
      "OU": "System"
    }
  ]
}


1
2
3
4
5
6
7
8

# 生成 etcd   密钥

/opt/local/cfssl/cfssl gencert -ca=/opt/ssl/ca.pem \
  -ca-key=/opt/ssl/ca-key.pem \
  -config=/opt/ssl/config.json \
  -profile=kubernetes etcd-csr.json | \
  /opt/local/cfssl/cfssljson -bare etcd


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

# 查看生成

[root@kubernetes-64 ssl]# ls etcd*
etcd.csr  etcd-csr.json  etcd-key.pem  etcd.pem


# 检查证书

[root@kubernetes-64 ssl]# /opt/local/cfssl/cfssl-certinfo -cert etcd.pem



# 拷贝到etcd服务器

# etcd-1
cp etcd*.pem /etc/kubernetes/ssl/

# etcd-2
scp etcd*.pem 172.16.1.65:/etc/kubernetes/ssl/

# etcd-3
scp etcd*.pem 172.16.1.66:/etc/kubernetes/ssl/



# 如果 etcd 非 root 用户，读取证书会提示没权限

chmod 644 /etc/kubernetes/ssl/etcd-key.pem

修改 etcd 配置

由于 etcd 是最重要的组件，所以 –data-dir 请配置到其他路径中

1
2
3
4
5
6
7
8
9

# 创建 etcd data 目录， 并授权

useradd etcd

mkdir -p /opt/etcd

chown -R etcd:etcd /opt/etcd



 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

# etcd-1


vi /etc/systemd/system/etcd.service


[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target

[Service]
Type=notify
WorkingDirectory=/opt/etcd/
User=etcd
# set GOMAXPROCS to number of processors
ExecStart=/usr/bin/etcd \
  --name=etcd1 \
  --cert-file=/etc/kubernetes/ssl/etcd.pem \
  --key-file=/etc/kubernetes/ssl/etcd-key.pem \
  --peer-cert-file=/etc/kubernetes/ssl/etcd.pem \
  --peer-key-file=/etc/kubernetes/ssl/etcd-key.pem \
  --trusted-ca-file=/etc/kubernetes/ssl/ca.pem \
  --peer-trusted-ca-file=/etc/kubernetes/ssl/ca.pem \
  --initial-advertise-peer-urls=https://172.16.1.64:2380 \
  --listen-peer-urls=https://172.16.1.64:2380 \
  --listen-client-urls=https://172.16.1.64:2379,http://127.0.0.1:2379 \
  --advertise-client-urls=https://172.16.1.64:2379 \
  --initial-cluster-token=k8s-etcd-cluster \
  --initial-cluster=etcd1=https://172.16.1.64:2380,etcd2=https://172.16.1.65:2380,etcd3=https://172.16.1.66:2380 \
  --initial-cluster-state=new \
  --data-dir=/opt/etcd/
Restart=on-failure
RestartSec=5
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

# etcd-2


vi /etc/systemd/system/etcd.service


[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target

[Service]
Type=notify
WorkingDirectory=/opt/etcd/
User=etcd
# set GOMAXPROCS to number of processors
ExecStart=/usr/bin/etcd \
  --name=etcd2 \
  --cert-file=/etc/kubernetes/ssl/etcd.pem \
  --key-file=/etc/kubernetes/ssl/etcd-key.pem \
  --peer-cert-file=/etc/kubernetes/ssl/etcd.pem \
  --peer-key-file=/etc/kubernetes/ssl/etcd-key.pem \
  --trusted-ca-file=/etc/kubernetes/ssl/ca.pem \
  --peer-trusted-ca-file=/etc/kubernetes/ssl/ca.pem \
  --initial-advertise-peer-urls=https://172.16.1.65:2380 \
  --listen-peer-urls=https://172.16.1.65:2380 \
  --listen-client-urls=https://172.16.1.65:2379,http://127.0.0.1:2379 \
  --advertise-client-urls=https://172.16.1.65:2379 \
  --initial-cluster-token=k8s-etcd-cluster \
  --initial-cluster=etcd1=https://172.16.1.64:2380,etcd2=https://172.16.1.65:2380,etcd3=https://172.16.1.66:2380 \
  --initial-cluster-state=new \
  --data-dir=/opt/etcd
Restart=on-failure
RestartSec=5
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

# etcd-3


vi /etc/systemd/system/etcd.service


[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target

[Service]
Type=notify
WorkingDirectory=/opt/etcd/
User=etcd
# set GOMAXPROCS to number of processors
ExecStart=/usr/bin/etcd \
  --name=etcd3 \
  --cert-file=/etc/kubernetes/ssl/etcd.pem \
  --key-file=/etc/kubernetes/ssl/etcd-key.pem \
  --peer-cert-file=/etc/kubernetes/ssl/etcd.pem \
  --peer-key-file=/etc/kubernetes/ssl/etcd-key.pem \
  --trusted-ca-file=/etc/kubernetes/ssl/ca.pem \
  --peer-trusted-ca-file=/etc/kubernetes/ssl/ca.pem \
  --initial-advertise-peer-urls=https://172.16.1.66:2380 \
  --listen-peer-urls=https://172.16.1.66:2380 \
  --listen-client-urls=https://172.16.1.66:2379,http://127.0.0.1:2379 \
  --advertise-client-urls=https://172.16.1.66:2379 \
  --initial-cluster-token=k8s-etcd-cluster \
  --initial-cluster=etcd1=https://172.16.1.64:2380,etcd2=https://172.16.1.65:2380,etcd3=https://172.16.1.66:2380 \
  --initial-cluster-state=new \
  --data-dir=/opt/etcd/
Restart=on-failure
RestartSec=5
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

启动 etcd

分别启动 所有节点的 etcd 服务

1
2
3
4

systemctl daemon-reload
systemctl enable etcd
systemctl start etcd
systemctl status etcd

1
2
3

# 如果报错 请使用
journalctl -f -t etcd  和 journalctl -u etcd 来定位问题

验证 etcd 集群状态

查看 etcd 集群状态：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

etcdctl --endpoints=https://172.16.1.64:2379,https://172.16.1.65:2379,https://172.16.1.66:2379\
        --cert-file=/etc/kubernetes/ssl/etcd.pem \
        --ca-file=/etc/kubernetes/ssl/ca.pem \
        --key-file=/etc/kubernetes/ssl/etcd-key.pem \
        cluster-health

member 35eefb8e7cc93b53 is healthy: got healthy result from https://172.16.1.66:2379
member 4576ff5ed626a66b is healthy: got healthy result from https://172.16.1.64:2379
member bf3bd651ec832339 is healthy: got healthy result from https://172.16.1.65:2379
cluster is healthy

查看 etcd 集群成员：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

etcdctl --endpoints=https://172.16.1.64:2379,https://172.16.1.65:2379,https://172.16.1.66:2379\
        --cert-file=/etc/kubernetes/ssl/etcd.pem \
        --ca-file=/etc/kubernetes/ssl/ca.pem \
        --key-file=/etc/kubernetes/ssl/etcd-key.pem \
        member list


35eefb8e7cc93b53: name=etcd3 peerURLs=https://172.16.1.66:2380 clientURLs=https://172.16.1.66:2379 isLeader=false
4576ff5ed626a66b: name=etcd1 peerURLs=https://172.16.1.64:2380 clientURLs=https://172.16.1.64:2379 isLeader=true
bf3bd651ec832339: name=etcd2 peerURLs=https://172.16.1.65:2380 clientURLs=https://172.16.1.65:2379 isLeader=false

配置 Kubernetes 集群

kubectl 安装在所有需要进行操作的机器上

Master and Node

Master 需要部署 kube-apiserver , kube-scheduler , kube-controller-manager 这三个组件。 kube-scheduler 作用是调度pods分配到那个node里，简单来说就是资源调度。

kube-controller-manager 作用是 对 deployment controller , replication controller, endpoints controller, namespace controller, and serviceaccounts controller等等的循环控制，与kube-apiserver交互。

安装组件

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

# 从github 上下载版本

cd /tmp

wget https://dl.k8s.io/v1.13.1/kubernetes-server-linux-amd64.tar.gz

tar -xzvf kubernetes-server-linux-amd64.tar.gz

cd kubernetes

cp -r server/bin/{kube-apiserver,kube-controller-manager,kube-scheduler,kubectl,kubelet,kubeadm} /usr/local/bin/


scp server/bin/{kube-apiserver,kube-controller-manager,kube-scheduler,kubectl,kube-proxy,kubelet,kubeadm} 172.16.1.65:/usr/local/bin/


scp server/bin/{kube-proxy,kubelet} 172.16.1.66:/usr/local/bin/

创建 admin 证书

kubectl 与 kube-apiserver 的安全端口通信，需要为安全通信提供 TLS 证书和秘钥。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

cd /opt/ssl/

vi admin-csr.json


{
  "CN": "admin",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "ShenZhen",
      "L": "ShenZhen",
      "O": "system:masters",
      "OU": "System"
    }
  ]
}


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

# 生成 admin 证书和私钥
cd /opt/ssl/

/opt/local/cfssl/cfssl gencert -ca=/etc/kubernetes/ssl/ca.pem \
  -ca-key=/etc/kubernetes/ssl/ca-key.pem \
  -config=/opt/ssl/config.json \
  -profile=kubernetes admin-csr.json | /opt/local/cfssl/cfssljson -bare admin


# 查看生成

[root@kubernetes-64 ssl]# ls admin*
admin.csr  admin-csr.json  admin-key.pem  admin.pem

cp admin*.pem /etc/kubernetes/ssl/

scp admin*.pem 172.16.1.65:/etc/kubernetes/ssl/

生成 kubernetes 配置文件

生成证书相关的配置文件存储与 /root/.kube 目录中

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

# 配置 kubernetes 集群

kubectl config set-cluster kubernetes \
  --certificate-authority=/etc/kubernetes/ssl/ca.pem \
  --embed-certs=true \
  --server=https://127.0.0.1:6443


# 配置 客户端认证

kubectl config set-credentials admin \
  --client-certificate=/etc/kubernetes/ssl/admin.pem \
  --embed-certs=true \
  --client-key=/etc/kubernetes/ssl/admin-key.pem



kubectl config set-context kubernetes \
  --cluster=kubernetes \
  --user=admin


kubectl config use-context kubernetes

创建 kubernetes 证书

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

cd /opt/ssl

vi kubernetes-csr.json

{
  "CN": "kubernetes",
  "hosts": [
    "127.0.0.1",
    "172.16.1.64",
    "172.16.1.65",
    "172.16.1.66",
    "10.254.0.1",
    "kubernetes",
    "kubernetes.default",
    "kubernetes.default.svc",
    "kubernetes.default.svc.cluster",
    "kubernetes.default.svc.cluster.local"
  ],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "ShenZhen",
      "L": "ShenZhen",
      "O": "k8s",
      "OU": "System"
    }
  ]
}


## 这里 hosts 字段中 三个 IP 分别为 127.0.0.1 本机， 172.16.1.64 和 172.16.1.65 为 Master 的IP，多个Master需要写多个。  10.254.0.1 为 kubernetes SVC 的 IP， 一般是 部署网络的第一个IP , 如: 10.254.0.1 ， 在启动完成后，我们使用   kubectl get svc ， 就可以查看到

生成 kubernetes 证书和私钥

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

/opt/local/cfssl/cfssl gencert -ca=/etc/kubernetes/ssl/ca.pem \
  -ca-key=/etc/kubernetes/ssl/ca-key.pem \
  -config=/opt/ssl/config.json \
  -profile=kubernetes kubernetes-csr.json | /opt/local/cfssl/cfssljson -bare kubernetes

# 查看生成

[root@kubernetes-64 ssl]# ls -lt kubernetes*
-rw-r--r-- 1 root root 1261 11月 16 15:12 kubernetes.csr
-rw------- 1 root root 1679 11月 16 15:12 kubernetes-key.pem
-rw-r--r-- 1 root root 1635 11月 16 15:12 kubernetes.pem
-rw-r--r-- 1 root root  475 11月 16 15:12 kubernetes-csr.json


# 拷贝到目录
cp kubernetes*.pem /etc/kubernetes/ssl/

scp kubernetes*.pem 172.16.1.65:/etc/kubernetes/ssl/

配置 kube-apiserver

kubelet 首次启动时向 kube-apiserver 发送 TLS Bootstrapping 请求，kube-apiserver 验证 kubelet 请求中的 token 是否与它配置的 token 一致，如果一致则自动为 kubelet生成证书和秘钥。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

# 生成 token

[root@kubernetes-64 ssl]# head -c 16 /dev/urandom | od -An -t x | tr -d ' '
22a762c6fd1e636c3b1c7248980e4b93


# 创建 encryption-config.yaml 配置

cat > encryption-config.yaml <<EOF
kind: EncryptionConfiguration
apiVersion: apiserver.config.k8s.io/v1
resources:
  - resources:
      - secrets
    providers:
      - aescbc:
          keys:
            - name: key1
              secret: 40179b02a8f6da07d90392ae966f7749
      - identity: {}
EOF


# 拷贝

cp encryption-config.yaml /etc/kubernetes/

scp encryption-config.yaml 172.16.1.65:/etc/kubernetes/


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

# 生成高级审核配置文件

> 官方说明 https://kubernetes.io/docs/tasks/debug-application-cluster/audit/
>
> 如下为最低限度的日志审核


cd /etc/kubernetes


cat >> audit-policy.yaml <<EOF
# Log all requests at the Metadata level.
apiVersion: audit.k8s.io/v1
kind: Policy
rules:
- level: Metadata
EOF




# 拷贝

scp audit-policy.yaml 172.16.1.65:/etc/kubernetes/

创建 kube-apiserver.service 文件

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

# 自定义 系统 service 文件一般存于 /etc/systemd/system/ 下
# 配置为 各自的本地 IP

vi /etc/systemd/system/kube-apiserver.service

[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=network.target

[Service]
User=root
ExecStart=/usr/local/bin/kube-apiserver \
  --admission-control=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,ResourceQuota,NodeRestriction \
  --anonymous-auth=false \
  --encryption-provider-config=/etc/kubernetes/encryption-config.yaml \
  --advertise-address=172.16.1.64 \
  --allow-privileged=true \
  --apiserver-count=3 \
  --audit-policy-file=/etc/kubernetes/audit-policy.yaml \
  --audit-log-maxage=30 \
  --audit-log-maxbackup=3 \
  --audit-log-maxsize=100 \
  --audit-log-path=/var/log/kubernetes/audit.log \
  --authorization-mode=Node,RBAC \
  --bind-address=0.0.0.0 \
  --secure-port=6443 \
  --client-ca-file=/etc/kubernetes/ssl/ca.pem \
  --kubelet-client-certificate=/etc/kubernetes/ssl/kubernetes.pem \
  --kubelet-client-key=/etc/kubernetes/ssl/kubernetes-key.pem \
  --enable-swagger-ui=true \
  --etcd-cafile=/etc/kubernetes/ssl/ca.pem \
  --etcd-certfile=/etc/kubernetes/ssl/etcd.pem \
  --etcd-keyfile=/etc/kubernetes/ssl/etcd-key.pem \
  --etcd-servers=https://172.16.1.64:2379,https://172.16.1.65:2379,https://172.16.1.66:2379 \
  --event-ttl=1h \
  --kubelet-https=true \
  --insecure-bind-address=127.0.0.1 \
  --insecure-port=8080 \
  --service-account-key-file=/etc/kubernetes/ssl/ca-key.pem \
  --service-cluster-ip-range=10.254.0.0/18 \
  --service-node-port-range=30000-32000 \
  --tls-cert-file=/etc/kubernetes/ssl/kubernetes.pem \
  --tls-private-key-file=/etc/kubernetes/ssl/kubernetes-key.pem \
  --enable-bootstrap-token-auth \
  --v=1
Restart=on-failure
RestartSec=5
Type=notify
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target


1
2
3

# --encryption-provider-config ，替代之前 token.csv 文件
# 这里面要注意的是 --service-node-port-range=30000-32000
# 这个地方是 映射外部端口时 的端口范围，随机映射也在这个范围内映射，指定映射端口必须也在这个范围内。

启动 kube-apiserver

1
2
3
4
5

systemctl daemon-reload
systemctl enable kube-apiserver
systemctl start kube-apiserver
systemctl status kube-apiserver


1
2

# 如果报错 请使用
journalctl -f -t kube-apiserver  和 journalctl -u kube-apiserver 来定位问题

配置 kube-controller-manager

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

# 创建 kube-controller-manager.service 文件

vi /etc/systemd/system/kube-controller-manager.service


[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/GoogleCloudPlatform/kubernetes

[Service]
ExecStart=/usr/local/bin/kube-controller-manager \
  --address=0.0.0.0 \
  --master=http://127.0.0.1:8080 \
  --allocate-node-cidrs=true \
  --service-cluster-ip-range=10.254.0.0/18 \
  --cluster-cidr=10.254.64.0/18 \
  --cluster-signing-cert-file=/etc/kubernetes/ssl/ca.pem \
  --cluster-signing-key-file=/etc/kubernetes/ssl/ca-key.pem \
  --feature-gates=RotateKubeletServerCertificate=true \
  --controllers=*,tokencleaner,bootstrapsigner \
  --experimental-cluster-signing-duration=86700h0m0s \
  --cluster-name=kubernetes \
  --service-account-private-key-file=/etc/kubernetes/ssl/ca-key.pem \
  --root-ca-file=/etc/kubernetes/ssl/ca.pem \
  --leader-elect=true \
  --node-monitor-grace-period=40s \
  --node-monitor-period=5s \
  --pod-eviction-timeout=5m0s \
  --v=2
Restart=on-failure
RestartSec=5

[Install]
WantedBy=multi-user.target

启动 kube-controller-manager

1
2
3
4

systemctl daemon-reload
systemctl enable kube-controller-manager
systemctl start kube-controller-manager
systemctl status kube-controller-manager

1
2
3

# 如果报错 请使用
journalctl -f -t kube-controller-manager  和 journalctl -u kube-controller-manager 来定位问题

配置 kube-scheduler

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

# 创建 kube-scheduler.service 文件

vi /etc/systemd/system/kube-scheduler.service


[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/GoogleCloudPlatform/kubernetes

[Service]
ExecStart=/usr/local/bin/kube-scheduler \
  --address=0.0.0.0 \
  --master=http://127.0.0.1:8080 \
  --leader-elect=true \
  --v=1
Restart=on-failure
RestartSec=5

[Install]
WantedBy=multi-user.target

启动 kube-scheduler

1
2
3
4
5

systemctl daemon-reload
systemctl enable kube-scheduler
systemctl start kube-scheduler
systemctl status kube-scheduler

验证 kube-scheduler 的 ha

kube-scheduler 通过配置 leader-elect=true 自动选择 leader

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

# 使用如下命令 可以查看 holderIdentity 字段中的前缀 来判断 leader

kubectl get endpoints kube-scheduler --namespace=kube-system  -o yaml

apiVersion: v1
kind: Endpoints
metadata:
  annotations:
    control-plane.alpha.kubernetes.io/leader: '{"holderIdentity":"kubernetes-2_84a37531-f846-11e8-a04c-000c29e78616","leaseDurationSeconds":15,"acquireTime":"2018-12-05T04:33:02Z","renewTime":"2018-12-05T04:33:10Z","leaderTransitions":4}'
  creationTimestamp: "2018-10-09T02:38:12Z"
  name: kube-scheduler
  namespace: kube-system
  resourceVersion: "7718283"
  selfLink: /api/v1/namespaces/kube-system/endpoints/kube-scheduler
  uid: 5dbb5a57-cb6c-11e8-8f42-000c2947006b

验证 Master 节点

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

[root@kubernetes-64 ~]# kubectl get componentstatuses
NAME                 STATUS    MESSAGE              ERROR
controller-manager   Healthy   ok
scheduler            Healthy   ok
etcd-2               Healthy   {"health": "true"}
etcd-0               Healthy   {"health": "true"}
etcd-1               Healthy   {"health": "true"}



[root@kubernetes-65 ~]# kubectl get componentstatuses
NAME                 STATUS    MESSAGE              ERROR
controller-manager   Healthy   ok
scheduler            Healthy   ok
etcd-2               Healthy   {"health": "true"}
etcd-0               Healthy   {"health": "true"}
etcd-1               Healthy   {"health": "true"}

配置 kubelet 认证

kubelet 授权 kube-apiserver 的一些操作 exec run logs 等

1
2
3
4
5


# RBAC 只需创建一次就可以

kubectl create clusterrolebinding kube-apiserver:kubelet-apis --clusterrole=system:kubelet-api-admin --user kubernetes

创建 bootstrap kubeconfig 文件

注意: token 生效时间为 1day , 超过时间未创建自动失效，需要重新创建 token

1
2
3
4
5
6
7
8

# 创建 集群所有 kubelet 的 token
[root@kubernetes-64 kubernetes]# kubeadm token create --description kubelet-bootstrap-token --groups system:bootstrappers:kubernetes-64 --kubeconfig ~/.kube/config



I1009 10:39:16.623409    3117 version.go:89] could not fetch a Kubernetes version from the internet: unable to get URL "https://dl.k8s.io/release/stable-1.txt": Get https://storage.googleapis.com/kubernetes-release/release/stable-1.txt: dial tcp 172.217.25.16:443: connect: connection timed out
I1009 10:39:16.623486    3117 version.go:94] falling back to the local client version: v1.13.1
ado3mb.00vde0vkgvfbpz30

1
2
3
4
5
6

[root@kubernetes-64 kubernetes]# kubeadm token create --description kubelet-bootstrap-token --groups system:bootstrappers:kubernetes-65 --kubeconfig ~/.kube/config


I1009 10:40:14.199418    3126 version.go:89] could not fetch a Kubernetes version from the internet: unable to get URL "https://dl.k8s.io/release/stable-1.txt": Get https://storage.googleapis.com/kubernetes-release/release/stable-1.txt: dial tcp 172.217.25.16:443: connect: connection timed out
I1009 10:40:14.199487    3126 version.go:94] falling back to the local client version: v1.13.1
6xkesn.bmym9293ty2r1umr

1
2
3
4
5
6
7

[root@kubernetes-64 kubernetes]# kubeadm token create --description kubelet-bootstrap-token --groups system:bootstrappers:kubernetes-66 --kubeconfig ~/.kube/config



I1009 10:40:42.919424    3136 version.go:89] could not fetch a Kubernetes version from the internet: unable to get URL "https://dl.k8s.io/release/stable-1.txt": Get https://storage.googleapis.com/kubernetes-release/release/stable-1.txt: dial tcp 172.217.25.16:443: connect: connection timed out
I1009 10:40:42.919501    3136 version.go:94] falling back to the local client version: v1.13.1
6jj682.j7wgboa50f6agith

1
2
3
4
5
6

# 查看生成的 token
[root@kubernetes-64 kubernetes]# kubeadm token list --kubeconfig ~/.kube/config
TOKEN                     TTL       EXPIRES                     USAGES                   DESCRIPTION               EXTRA GROUPS
6jj682.j7wgboa50f6agith   23h       2018-10-10T10:40:42+08:00   authentication,signing   kubelet-bootstrap-token   system:bootstrappers:kubernetes-64
6xkesn.bmym9293ty2r1umr   23h       2018-10-10T10:40:14+08:00   authentication,signing   kubelet-bootstrap-token   system:bootstrappers:kubernetes-65
ado3mb.00vde0vkgvfbpz30   23h       2018-10-10T10:39:16+08:00   authentication,signing   kubelet-bootstrap-token   system:bootstrappers:kubernetes-66

以下为了区分 会先生成 node 名称加 bootstrap.kubeconfig

生成 kubernetes-64

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

# 生成 64 的 bootstrap.kubeconfig

# 配置集群参数
kubectl config set-cluster kubernetes \
  --certificate-authority=/etc/kubernetes/ssl/ca.pem \
  --embed-certs=true \
  --server=https://127.0.0.1:6443 \
  --kubeconfig=kubernetes-64-bootstrap.kubeconfig

# 配置客户端认证

kubectl config set-credentials kubelet-bootstrap \
  --token=6jj682.j7wgboa50f6agith \
  --kubeconfig=kubernetes-64-bootstrap.kubeconfig


# 配置关联

kubectl config set-context default \
  --cluster=kubernetes \
  --user=kubelet-bootstrap \
  --kubeconfig=kubernetes-64-bootstrap.kubeconfig


# 配置默认关联
kubectl config use-context default --kubeconfig=kubernetes-64-bootstrap.kubeconfig

# 拷贝生成的 kubernetes-64-bootstrap.kubeconfig 文件

mv kubernetes-64-bootstrap.kubeconfig /etc/kubernetes/bootstrap.kubeconfig

生成 kubernetes-65

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

# 生成 65 的 bootstrap.kubeconfig

# 配置集群参数
kubectl config set-cluster kubernetes \
  --certificate-authority=/etc/kubernetes/ssl/ca.pem \
  --embed-certs=true \
  --server=https://127.0.0.1:6443 \
  --kubeconfig=kubernetes-65-bootstrap.kubeconfig

# 配置客户端认证

kubectl config set-credentials kubelet-bootstrap \
  --token=1ua4d4.9bluufy3esw4lch6 \
  --kubeconfig=kubernetes-65-bootstrap.kubeconfig


# 配置关联

kubectl config set-context default \
  --cluster=kubernetes \
  --user=kubelet-bootstrap \
  --kubeconfig=kubernetes-65-bootstrap.kubeconfig


# 配置默认关联
kubectl config use-context default --kubeconfig=kubernetes-65-bootstrap.kubeconfig


# 拷贝生成的 kubernetes-65-bootstrap.kubeconfig 文件

scp kubernetes-65-bootstrap.kubeconfig 172.16.1.65:/etc/kubernetes/bootstrap.kubeconfig

生成 kubernetes-66

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

# 生成 66 的 bootstrap.kubeconfig

# 配置集群参数
kubectl config set-cluster kubernetes \
  --certificate-authority=/etc/kubernetes/ssl/ca.pem \
  --embed-certs=true \
  --server=https://127.0.0.1:6443 \
  --kubeconfig=kubernetes-66-bootstrap.kubeconfig

# 配置客户端认证

kubectl config set-credentials kubelet-bootstrap \
  --token=r8llj2.itme3y54ok531ops \
  --kubeconfig=kubernetes-66-bootstrap.kubeconfig


# 配置关联

kubectl config set-context default \
  --cluster=kubernetes \
  --user=kubelet-bootstrap \
  --kubeconfig=kubernetes-66-bootstrap.kubeconfig


# 配置默认关联
kubectl config use-context default --kubeconfig=kubernetes-66-bootstrap.kubeconfig


# 拷贝生成的 kubernetes-66-bootstrap.kubeconfig 文件

scp kubernetes-66-bootstrap.kubeconfig 172.16.1.66:/etc/kubernetes/bootstrap.kubeconfig

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

# 配置 bootstrap RBAC 权限

kubectl create clusterrolebinding kubelet-bootstrap --clusterrole=system:node-bootstrapper --group=system:bootstrappers



# 否则报如下错误

failed to run Kubelet: cannot create certificate signing request: certificatesigningrequests.certificates.k8s.io is forbidden: User "system:bootstrap:1jezb7" cannot create certificatesigningrequests.certificates.k8s.io at the cluster scope

创建自动批准相关 CSR 请求的 ClusterRole

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

vi /etc/kubernetes/tls-instructs-csr.yaml


kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: system:certificates.k8s.io:certificatesigningrequests:selfnodeserver
rules:
- apiGroups: ["certificates.k8s.io"]
  resources: ["certificatesigningrequests/selfnodeserver"]
  verbs: ["create"]



# 导入 yaml 文件

[root@kubernetes-64 opt]# kubectl apply -f /etc/kubernetes/tls-instructs-csr.yaml
clusterrole.rbac.authorization.k8s.io "system:certificates.k8s.io:certificatesigningrequests:selfnodeserver" created



# 查看

[root@kubernetes-64 opt]# kubectl describe ClusterRole/system:certificates.k8s.io:certificatesigningrequests:selfnodeserver
Name:         system:certificates.k8s.io:certificatesigningrequests:selfnodeserver
Labels:       <none>
Annotations:  kubectl.kubernetes.io/last-applied-configuration={"apiVersion":"rbac.authorization.k8s.io/v1","kind":"ClusterRole","metadata":{"annotations":{},"name":"system:certificates.k8s.io:certificatesigningreq...
PolicyRule:
  Resources                                                      Non-Resource URLs  Resource Names  Verbs
  ---------                                                      -----------------  --------------  -----
  certificatesigningrequests.certificates.k8s.io/selfnodeserver  []                 []              [create]



 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

#  将 ClusterRole 绑定到适当的用户组


# 自动批准 system:bootstrappers 组用户 TLS bootstrapping 首次申请证书的 CSR 请求

kubectl create clusterrolebinding node-client-auto-approve-csr --clusterrole=system:certificates.k8s.io:certificatesigningrequests:nodeclient --group=system:bootstrappers


# 自动批准 system:nodes 组用户更新 kubelet 自身与 apiserver 通讯证书的 CSR 请求

kubectl create clusterrolebinding node-client-auto-renew-crt --clusterrole=system:certificates.k8s.io:certificatesigningrequests:selfnodeclient --group=system:nodes


# 自动批准 system:nodes 组用户更新 kubelet 10250 api 端口证书的 CSR 请求

kubectl create clusterrolebinding node-server-auto-renew-crt --clusterrole=system:certificates.k8s.io:certificatesigningrequests:selfnodeserver --group=system:nodes

创建 kubelet.service 文件

关于 kubectl get node 中的 ROLES 的标签

单 Master 打标签 kubectl label node kubernetes-64 node-role.kubernetes.io/master=””

这里需要将 单Master 更改为 NoSchedule

更新标签命令为 kubectl taint nodes kubernetes-64 node-role.kubernetes.io/master=:NoSchedule

既 Master 又是 node 打标签 kubectl label node kubernetes-65 node-role.kubernetes.io/master=””

单 Node 打标签 kubectl label node kubernetes-66 node-role.kubernetes.io/node=””

关于删除 label 可使用 - 号相连 如: kubectl label nodes kubernetes-65 node-role.kubernetes.io/node-

动态 kubelet 配置

官方说明 https://kubernetes.io/docs/tasks/administer-cluster/kubelet-config-file/ https://kubernetes.io/docs/tasks/administer-cluster/reconfigure-kubelet/

https://github.com/kubernetes/kubernetes/blob/release-1.12/pkg/kubelet/apis/config/types.go

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

# 创建 kubelet 目录

mkdir -p /var/lib/kubelet


vi /etc/systemd/system/kubelet.service


[Unit]
Description=Kubernetes Kubelet
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=docker.service
Requires=docker.service

[Service]
WorkingDirectory=/var/lib/kubelet
ExecStart=/usr/local/bin/kubelet \
  --hostname-override=kubernetes-64 \
  --pod-infra-container-image=jicki/pause-amd64:3.1 \
  --bootstrap-kubeconfig=/etc/kubernetes/bootstrap.kubeconfig \
  --kubeconfig=/etc/kubernetes/kubelet.kubeconfig \
  --config=/etc/kubernetes/kubelet.config.json \
  --cert-dir=/etc/kubernetes/ssl \
  --logtostderr=true \
  --v=2

[Install]
WantedBy=multi-user.target


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

# 创建 kubelet config 配置文件

vi /etc/kubernetes/kubelet.config.json


{
  "kind": "KubeletConfiguration",
  "apiVersion": "kubelet.config.k8s.io/v1beta1",
  "authentication": {
    "x509": {
      "clientCAFile": "/etc/kubernetes/ssl/ca.pem"
    },
    "webhook": {
      "enabled": true,
      "cacheTTL": "2m0s"
    },
    "anonymous": {
      "enabled": false
    }
  },
  "authorization": {
    "mode": "Webhook",
    "webhook": {
      "cacheAuthorizedTTL": "5m0s",
      "cacheUnauthorizedTTL": "30s"
    }
  },
  "address": "172.16.1.64",
  "port": 10250,
  "readOnlyPort": 0,
  "cgroupDriver": "cgroupfs",
  "hairpinMode": "promiscuous-bridge",
  "serializeImagePulls": false,
  "RotateCertificates": true,
  "featureGates": {
    "RotateKubeletClientCertificate": true,
    "RotateKubeletServerCertificate": true
  },
  "MaxPods": "512",
  "failSwapOn": false,
  "containerLogMaxSize": "10Mi",
  "containerLogMaxFiles": 5,
  "clusterDomain": "cluster.local.",
  "clusterDNS": ["10.254.0.2"]
}


1
2
3
4
5
6

# 如上配置:
kubernetes-64    本机hostname
10.254.0.2       预分配的 dns 地址
cluster.local.   为 kubernetes 集群的 domain
jicki/pause-amd64:3.1  这个是 pod 的基础镜像，既 gcr 的 gcr.io/google_containers/pause-amd64:3.1 镜像， 下载下来修改为自己的仓库中的比较快。
"clusterDNS": ["10.254.0.2"] 可配置多个 dns地址，逗号可开, 可配置宿主机dns.

启动 kubelet

1
2
3
4
5

systemctl daemon-reload
systemctl enable kubelet
systemctl start kubelet
systemctl status kubelet


1
2
3

# 如果报错 请使用
journalctl -f -t kubelet  和 journalctl -u kubelet 来定位问题

验证 nodes

1
2
3
4

[root@kubernetes-64 ~]# kubectl get nodes
NAME            STATUS    ROLES     AGE       VERSION
kubernetes-64   Ready     master    17h       v1.13.1

查看 kubelet 生成文件

1
2
3
4
5
6
7
8

[root@kubernetes-64 ~]# ls -lt /etc/kubernetes/ssl/kubelet-*
-rw------- 1 root root 1374 4月  23 11:55 /etc/kubernetes/ssl/kubelet-server-2018-04-23-11-55-38.pem
lrwxrwxrwx 1 root root   58 4月  23 11:55 /etc/kubernetes/ssl/kubelet-server-current.pem -> /etc/kubernetes/ssl/kubelet-server-2018-04-23-11-55-38.pem
-rw-r--r-- 1 root root 1050 4月  23 11:55 /etc/kubernetes/ssl/kubelet-client.crt
-rw------- 1 root root  227 4月  23 11:55 /etc/kubernetes/ssl/kubelet-client.key

配置 kube-proxy

创建 kube-proxy 证书

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

# 证书方面由于我们node端没有装 cfssl
# 我们回到 master 端 机器 去配置证书，然后拷贝过来

[root@kubernetes-64 ~]# cd /opt/ssl


vi kube-proxy-csr.json

{
  "CN": "system:kube-proxy",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "ShenZhen",
      "L": "ShenZhen",
      "O": "k8s",
      "OU": "System"
    }
  ]
}

生成 kube-proxy 证书和私钥

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

/opt/local/cfssl/cfssl gencert -ca=/etc/kubernetes/ssl/ca.pem \
  -ca-key=/etc/kubernetes/ssl/ca-key.pem \
  -config=/opt/ssl/config.json \
  -profile=kubernetes  kube-proxy-csr.json | /opt/local/cfssl/cfssljson -bare kube-proxy

# 查看生成
ls kube-proxy*
kube-proxy.csr  kube-proxy-csr.json  kube-proxy-key.pem  kube-proxy.pem

# 拷贝到目录

cp kube-proxy* /etc/kubernetes/ssl/

scp kube-proxy* 172.16.1.65:/etc/kubernetes/ssl/

scp kube-proxy* 172.16.1.66:/etc/kubernetes/ssl/

创建 kube-proxy kubeconfig 文件

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

# 配置集群

kubectl config set-cluster kubernetes \
  --certificate-authority=/etc/kubernetes/ssl/ca.pem \
  --embed-certs=true \
  --server=https://127.0.0.1:6443 \
  --kubeconfig=kube-proxy.kubeconfig


# 配置客户端认证

kubectl config set-credentials kube-proxy \
  --client-certificate=/etc/kubernetes/ssl/kube-proxy.pem \
  --client-key=/etc/kubernetes/ssl/kube-proxy-key.pem \
  --embed-certs=true \
  --kubeconfig=kube-proxy.kubeconfig


# 配置关联

kubectl config set-context default \
  --cluster=kubernetes \
  --user=kube-proxy \
  --kubeconfig=kube-proxy.kubeconfig



# 配置默认关联
kubectl config use-context default --kubeconfig=kube-proxy.kubeconfig

# 拷贝到需要的 node 端里

scp kube-proxy.kubeconfig 172.16.1.65:/etc/kubernetes/

scp kube-proxy.kubeconfig 172.16.1.66:/etc/kubernetes/

创建 kube-proxy.service 文件

1.10 官方 ipvs 已经是默认的配置 –masquerade-all 必须添加这项配置，否则 创建 svc 在 ipvs 不会添加规则

打开 ipvs 需要安装 ipvsadm ipset conntrack 软件， 在 node 中安装 yum install ipset ipvsadm conntrack-tools.x86_64 -y

yaml 配置文件中的 参数如下:

https://github.com/kubernetes/kubernetes/blob/master/pkg/proxy/apis/config/types.go

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

cd /etc/kubernetes/

vi  kube-proxy.config.yaml


apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 172.16.1.66
clientConnection:
  kubeconfig: /etc/kubernetes/kube-proxy.kubeconfig
clusterCIDR: 10.254.64.0/18
healthzBindAddress: 172.16.1.66:10256
hostnameOverride: kubernetes-66
kind: KubeProxyConfiguration
metricsBindAddress: 172.16.1.66:10249
mode: "ipvs"


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

# 创建 kube-proxy 目录

mkdir -p /var/lib/kube-proxy




vi /etc/systemd/system/kube-proxy.service

[Unit]
Description=Kubernetes Kube-Proxy Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=network.target

[Service]
WorkingDirectory=/var/lib/kube-proxy
ExecStart=/usr/local/bin/kube-proxy \
  --config=/etc/kubernetes/kube-proxy.config.yaml \
  --logtostderr=true \
  --v=1
Restart=on-failure
RestartSec=5
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

启动 kube-proxy

1
2
3
4
5
6


systemctl daemon-reload
systemctl enable kube-proxy
systemctl start kube-proxy
systemctl status kube-proxy


1
2
3

# 如果报错 请使用
journalctl -f -t kube-proxy  和 journalctl -u kube-proxy 来定位问题


 1
 2
 3
 4
 5
 6
 7
 8
 9
10

# 检查  ipvs

[root@kubernetes-65 ~]# ipvsadm -L -n
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  10.254.0.1:443 rr persistent 10800
  -> 172.16.1.64:6443             Masq    1      0          0
  -> 172.16.1.65:6443             Masq    1      0          0


1
2
3

# 如果报错 请使用
journalctl -f -t kube-proxy  和 journalctl -u kube-proxy 来定位问题

至此 Master 端 与 Master and Node 端的安装完毕

Node 端

单 Node 部分 需要部署的组件有 docker calico kubelet kube-proxy 这几个组件。 Node 节点 基于 Nginx 负载 API 做 Master HA

1
2
3
4

# master 之间除 api server 以外其他组件通过 etcd 选举，api server 默认不作处理；
在每个 node 上启动一个 nginx，每个 nginx 反向代理所有 api server;
node 上 kubelet、kube-proxy 连接本地的 nginx 代理端口;
当 nginx 发现无法连接后端时会自动踢掉出问题的 api server，从而实现 api server 的 HA;

https://jicki.cn/img/posts/kubernetes/hamaster.jpg

发布证书

1
2
3
4
5
6

# ALL node

mkdir -p /etc/kubernetes/ssl/

scp ca.pem kube-proxy.pem kube-proxy-key.pem  node-*:/etc/kubernetes/ssl/

创建Nginx 代理

在每个 node 都必须创建一个 Nginx 代理， 这里特别注意， 当 Master 也做为 Node 的时候 不需要配置 Nginx-proxy

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

# 创建配置目录
mkdir -p /etc/nginx

# 写入代理配置
cat << EOF >> /etc/nginx/nginx.conf
error_log stderr notice;

worker_processes auto;
events {
  multi_accept on;
  use epoll;
  worker_connections 1024;
}

stream {
    upstream kube_apiserver {
        least_conn;
        server 172.16.1.64:6443;
        server 172.16.1.65:6443;
    }

    server {
        listen        0.0.0.0:6443;
        proxy_pass    kube_apiserver;
        proxy_timeout 10m;
        proxy_connect_timeout 1s;
    }
}
EOF

# 更新权限
chmod +r /etc/nginx/nginx.conf


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

# 配置 Nginx 基于 docker 进程，然后配置 systemd 来启动

cat << EOF >> /etc/systemd/system/nginx-proxy.service
[Unit]
Description=kubernetes apiserver docker wrapper
Wants=docker.socket
After=docker.service

[Service]
User=root
PermissionsStartOnly=true
ExecStart=/usr/bin/docker run -p 127.0.0.1:6443:6443 \\
                              -v /etc/nginx:/etc/nginx \\
                              --name nginx-proxy \\
                              --net=host \\
                              --restart=on-failure:5 \\
                              --memory=512M \\
                              nginx:1.13.7-alpine
ExecStartPre=-/usr/bin/docker rm -f nginx-proxy
ExecStop=/usr/bin/docker stop nginx-proxy
Restart=always
RestartSec=15s
TimeoutStartSec=30s

[Install]
WantedBy=multi-user.target
EOF


1
2
3
4
5
6
7

# 启动 Nginx

systemctl daemon-reload
systemctl start nginx-proxy
systemctl enable nginx-proxy
systemctl status nginx-proxy

配置 Kubelet.service 文件

systemd kubelet 配置

动态 kubelet 配置

官方说明 https://kubernetes.io/docs/tasks/administer-cluster/kubelet-config-file/ https://kubernetes.io/docs/tasks/administer-cluster/reconfigure-kubelet/

https://github.com/kubernetes/kubernetes/blob/release-1.12/pkg/kubelet/apis/config/types.go

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

# 创建 kubelet 目录


vi /etc/systemd/system/kubelet.service


[Unit]
Description=Kubernetes Kubelet
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=docker.service
Requires=docker.service

[Service]
WorkingDirectory=/var/lib/kubelet
ExecStart=/usr/local/bin/kubelet \
  --hostname-override=kubernetes-64 \
  --pod-infra-container-image=jicki/pause-amd64:3.1 \
  --bootstrap-kubeconfig=/etc/kubernetes/bootstrap.kubeconfig \
  --kubeconfig=/etc/kubernetes/kubelet.kubeconfig \
  --config=/etc/kubernetes/kubelet.config.json \
  --cert-dir=/etc/kubernetes/ssl \
  --logtostderr=true \
  --v=2

[Install]
WantedBy=multi-user.target


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

# 创建 kubelet config 配置文件

vi /etc/kubernetes/kubelet.config.json


{
  "kind": "KubeletConfiguration",
  "apiVersion": "kubelet.config.k8s.io/v1beta1",
  "authentication": {
    "x509": {
      "clientCAFile": "/etc/kubernetes/ssl/ca.pem"
    },
    "webhook": {
      "enabled": true,
      "cacheTTL": "2m0s"
    },
    "anonymous": {
      "enabled": false
    }
  },
  "authorization": {
    "mode": "Webhook",
    "webhook": {
      "cacheAuthorizedTTL": "5m0s",
      "cacheUnauthorizedTTL": "30s"
    }
  },
  "address": "172.16.1.66",
  "port": 10250,
  "readOnlyPort": 0,
  "cgroupDriver": "cgroupfs",
  "hairpinMode": "promiscuous-bridge",
  "serializeImagePulls": false,
  "featureGates": {
    "RotateKubeletClientCertificate": true,
    "RotateKubeletServerCertificate": true
  },
  "MaxPods": "512",
  "failSwapOn": false,
  "containerLogMaxSize": "10Mi",
  "containerLogMaxFiles": 5,
  "clusterDomain": "cluster.local.",
  "clusterDNS": ["10.254.0.2"]
}


1
2
3
4
5
6
7

# 启动 kubelet

systemctl daemon-reload
systemctl enable kubelet
systemctl start kubelet
systemctl status kubelet

配置 kube-proxy.service

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

cd /etc/kubernetes/

vi  kube-proxy.config.yaml


apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 172.16.1.66
clientConnection:
  kubeconfig: /etc/kubernetes/kube-proxy.kubeconfig
clusterCIDR: 10.254.64.0/18
healthzBindAddress: 172.16.1.66:10256
hostnameOverride: kubernetes-66
kind: KubeProxyConfiguration
metricsBindAddress: 172.16.1.66:10249
mode: "ipvs"


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

# 创建 kube-proxy 目录


vi /etc/systemd/system/kube-proxy.service

[Unit]
Description=Kubernetes Kube-Proxy Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=network.target

[Service]
WorkingDirectory=/var/lib/kube-proxy
ExecStart=/usr/local/bin/kube-proxy \
  --config=/etc/kubernetes/kube-proxy.config.yaml \
  --logtostderr=true \
  --v=1
Restart=on-failure
RestartSec=5
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target


1
2
3
4
5
6

#  启动

systemctl daemon-reload
systemctl enable kube-proxy
systemctl start kube-proxy
systemctl status kube-proxy

配置 Flannel 网络

公有云如 阿里云 华为云 可能无法使用 flannel 的 host-gw 模式，请使用 vxlan 或 calico 网络

flannel 网络只部署在 kube-proxy 相关机器

个人 百度盘 下载 https://pan.baidu.com/s/1_A3zzurG5vV40-FnyA8uWg

1
2

rpm -ivh flannel-0.10.0-1.x86_64.rpm


1
2
3
4
5
6
7
8

# 配置 flannel

# 由于我们docker更改了 docker.service.d 的路径

# 所以这里把 flannel.conf 的配置拷贝到 这个目录去

mv /usr/lib/systemd/system/docker.service.d/flannel.conf /etc/systemd/system/docker.service.d


1
2
3
4
5
6
7
8

# 配置 flannel 网段

etcdctl --endpoints=https://172.16.1.64:2379,https://172.16.1.65:2379,https://172.16.1.66:2379\
        --cert-file=/etc/kubernetes/ssl/etcd.pem \
        --ca-file=/etc/kubernetes/ssl/ca.pem \
        --key-file=/etc/kubernetes/ssl/etcd-key.pem \
        set /flannel/network/config \ '{"Network":"10.254.64.0/18","SubnetLen":24,"Backend":{"Type":"host-gw"}}'


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

# 修改 flanneld 配置

vi /etc/sysconfig/flanneld


# Flanneld configuration options

# etcd 地址

FLANNEL_ETCD_ENDPOINTS="https://172.16.1.64:2379,https://172.16.1.65:2379,https://172.16.1.66:2379"

# 配置为上面的路径 flannel/network
FLANNEL_ETCD_PREFIX="/flannel/network"

# 其他的配置，可查看 flanneld --help,这里添加了 etcd ssl 认证
FLANNEL_OPTIONS="-ip-masq=true -etcd-cafile=/etc/kubernetes/ssl/ca.pem -etcd-certfile=/etc/kubernetes/ssl/etcd.pem -etcd-keyfile=/etc/kubernetes/ssl/etcd-key.pem -iface=em1"


1
2
3
4
5
6
7

# 启动 flannel

systemctl daemon-reload
systemctl enable flanneld
systemctl start flanneld
systemctl status flanneld


1
2
3
4


# 如果报错 请使用
journalctl -f -t flanneld  和 journalctl -u flanneld 来定位问题


1
2
3
4
5
6
7
8

# 配置完毕，重启 docker

systemctl daemon-reload
systemctl enable docker
systemctl restart docker
systemctl status docker



1
2
3
4
5
6

# 重启 kubelet

systemctl daemon-reload
systemctl restart kubelet
systemctl status kubelet


1
2
3
4
5

# 验证 网络

ifconfig  查看  docker0 网络 是否已经更改为配置IP网段

配置 Calico 网络

官方文档 https://docs.projectcalico.org/v3.4/introduction

下载 Calico yaml

1
2
3
4
5

# 下载 yaml 文件

wget https://docs.projectcalico.org/v3.4/getting-started/kubernetes/installation/hosted/calico.yaml

下载镜像

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

# 下载 镜像

# 国外镜像 有墙
quay.io/calico/node:v3.3.1
quay.io/calico/cni:v3.3.1
quay.io/calico/kube-controllers:v3.3.1


# 国内镜像
jicki/node:v3.3.1
jicki/cni:v3.3.1
jicki/kube-controllers:v3.3.1



# 替换镜像
sed -i 's/quay\.io\/calico/jicki/g'  calico.yaml

修改配置

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

vi calico.yaml

# 注意修改如下选项:


# etcd 地址

  etcd_endpoints: "https://172.16.1.64:2379,https://172.16.1.65:2379,https://172.16.1.66:2379"


# etcd 证书路径
  # If you're using TLS enabled etcd uncomment the following.
  # You must also populate the Secret below with these files.
    etcd_ca: "/calico-secrets/etcd-ca"
    etcd_cert: "/calico-secrets/etcd-cert"
    etcd_key: "/calico-secrets/etcd-key"




# etcd 证书 base64 地址 (执行里面的命令生成的证书 base64 码，填入里面)

data:
  etcd-key: (cat /etc/kubernetes/ssl/etcd-key.pem | base64 | tr -d '\n')
  etcd-cert: (cat /etc/kubernetes/ssl/etcd.pem | base64 | tr -d '\n')
  etcd-ca: (cat /etc/kubernetes/ssl/ca.pem | base64 | tr -d '\n')





# 修改 pods 分配的 IP 段

            - name: CALICO_IPV4POOL_CIDR
              value: "10.254.64.0/18"



 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

# 导入 yaml 文件

[root@kubernetes-64 ~]# kubectl apply -f calico.yaml
configmap/calico-config created
secret/calico-etcd-secrets created
daemonset.extensions/calico-node created
serviceaccount/calico-node created
deployment.extensions/calico-kube-controllers created
serviceaccount/calico-kube-controllers created
clusterrole.rbac.authorization.k8s.io/calico-kube-controllers created
clusterrolebinding.rbac.authorization.k8s.io/calico-kube-controllers created
clusterrole.rbac.authorization.k8s.io/calico-node created
clusterrolebinding.rbac.authorization.k8s.io/calico-node created



# 查看服务


[root@kubernetes-64 ~]# kubectl get pods -n kube-system
NAME                                       READY   STATUS    RESTARTS   AGE
calico-kube-controllers-5d94b577bb-rzl7d   1/1     Running   0          52s
calico-node-4cbrl                          1/1     Running   0          52s
calico-node-9t7kj                          1/1     Running   0          52s
calico-node-hc4x6                          1/1     Running   0          52s

修改 kubelet 配置

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

#   kubelet 需要增加 cni 插件    --network-plugin=cni

vi /etc/systemd/system/kubelet.service


  --network-plugin=cni \



# 重新加载配置

systemctl daemon-reload
systemctl restart kubelet.service
systemctl status kubelet.service

检查网络

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

# 查看 node 中网络状况


[root@kubernetes-64 ~]# ifconfig

tunl0: flags=193<UP,RUNNING,NOARP>  mtu 1440
        inet 10.254.95.64  netmask 255.255.255.255
        tunnel   txqueuelen 1  (IPIP Tunnel)
        RX packets 2  bytes 168 (168.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 2  bytes 168 (168.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0



[root@kubernetes-65 ~]# ifconfig

tunl0: flags=193<UP,RUNNING,NOARP>  mtu 1440
        inet 10.254.116.128  netmask 255.255.255.255
        tunnel   txqueuelen 1  (IPIP Tunnel)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0



[root@kubernetes-66 ~]# ifconfig

tunl0: flags=193<UP,RUNNING,NOARP>  mtu 1440
        inet 10.254.70.64  netmask 255.255.255.255
        tunnel   txqueuelen 1  (IPIP Tunnel)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

安装 calicoctl

calicoctl 是 calico 网络的管理客户端, 只需要在一台 node 里配置既可。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52

# 下载 二进制文件

curl -O -L https://github.com/projectcalico/calicoctl/releases/download/v3.2.3/calicoctl

mv calicoctl /usr/local/bin/

chmod +x /usr/local/bin/calicoctl



# 创建 calicoctl.cfg 配置文件

mkdir /etc/calico

vi /etc/calico/calicoctl.cfg


apiVersion: projectcalico.org/v3
kind: CalicoAPIConfig
metadata:
spec:
  datastoreType: "kubernetes"
  kubeconfig: "/root/.kube/config"




# 查看 calico 状态

[root@kubernetes-64 ~]# calicoctl node status
Calico process is running.

IPv4 BGP status
+----------------+-------------------+-------+----------+-------------+
|  PEER ADDRESS  |     PEER TYPE     | STATE |  SINCE   |    INFO     |
+----------------+-------------------+-------+----------+-------------+
|  172.16.1.65   | node-to-node mesh | up    | 01:10:35 | Established |
|  172.16.1.66   | node-to-node mesh | up    | 01:10:35 | Established |
+----------------+-------------------+-------+----------+-------------+

IPv6 BGP status
No IPv6 peers found.




[root@kubernetes-64 ~]# calicoctl get node
NAME
kubernetes-64
kubernetes-65
kubernetes-66

测试集群

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

# 创建一个 nginx deplyment

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-dm
spec:
  replicas: 3
  selector:
    matchLabels:
      name: nginx
  template:
    metadata:
      labels:
        name: nginx
    spec:
      containers:
        - name: nginx
          image: nginx:alpine
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
              name: http
---

apiVersion: v1
kind: Service
metadata:
  name: nginx-svc
spec:
  ports:
    - port: 80
      name: http
      targetPort: 80
      protocol: TCP
  selector:
    name: nginx


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

[root@kubernetes-64 ~]# kubectl get pods -o wide
NAME                        READY     STATUS    RESTARTS   AGE       IP            NODE
nginx-dm-84f8f49555-dzpm9   1/1       Running   0          6s        10.254.90.2   kubernetes-65
nginx-dm-84f8f49555-qbnvv   1/1       Running   0          6s        10.254.66.2   k8s-master-66



[root@kubernetes-64 ~]# kubectl get svc -o wide
NAME         TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE       SELECTOR
kubernetes   ClusterIP   10.254.0.1      <none>        443/TCP   2h        <none>
nginx-svc    ClusterIP   10.254.41.39   <none>        80/TCP    1m



 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

# 在 安装了  网络的节点 里 curl

[root@kubernetes-64 ~]# curl 10.254.51.137
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
    body {
        width: 35em;
        margin: 0 auto;
        font-family: Tahoma, Verdana, Arial, sans-serif;
    }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

# 查看 ipvs 规则

[root@kubernetes-65 ~]# ipvsadm -L -n
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  10.254.0.1:443 rr persistent 10800
  -> 172.16.1.64:6443             Masq    1      0          0
  -> 172.16.1.65:6443             Masq    1      0          0
TCP  10.254.41.39:80 rr
  -> 10.254.66.2:80               Masq    1      0          0
  -> 10.254.90.2:80               Masq    1      0          1

配置 CoreDNS

官方 地址 https://coredns.io

下载 yaml 文件

1
2
3
4
5

wget https://raw.githubusercontent.com/coredns/deployment/master/kubernetes/coredns.yaml.sed

mv coredns.yaml.sed coredns.yaml

1.2.x 版本中 Corefile 部分更新了点东西，使用如下替换整个 Corefile 部分

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

# vi coredns.yaml



...
data:
  Corefile: |
    .:53 {
        errors
        health
        kubernetes cluster.local 10.254.0.0/18 {
          pods insecure
          upstream
          fallthrough in-addr.arpa ip6.arpa
        }
        prometheus :9153
        proxy . /etc/resolv.conf
        cache 30
        loop
        reload
        loadbalance
    }
...
  clusterIP: 10.254.0.2



 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

# 配置说明


# 这里 kubernetes cluster.local 为 创建 svc 的 IP 段

kubernetes cluster.local 10.254.0.0/18

# clusterIP  为 指定 DNS 的 IP

clusterIP: 10.254.0.2

导入 yaml 文件

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

# 导入

[root@kubernetes-64 coredns]# kubectl apply -f coredns.yaml
serviceaccount/coredns created
clusterrole.rbac.authorization.k8s.io/system:coredns created
clusterrolebinding.rbac.authorization.k8s.io/system:coredns created
configmap/coredns created
deployment.extensions/coredns created
service/kube-dns created

查看 coredns 服务

1
2
3
4
5
6
7

[root@kubernetes-64 coredns]# kubectl get pod,svc -n kube-system
NAME                           READY     STATUS    RESTARTS   AGE
pod/coredns-6975654877-nzhgr   1/1       Running   0          23s
pod/coredns-6975654877-qn4bp   1/1       Running   0          23s

NAME               TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)         AGE
service/kube-dns   ClusterIP   10.254.0.2   <none>        53/UDP,53/TCP   23s

检查日志

1
2
3
4
5
6
7

[root@kubernetes-64 coredns]# kubectl logs -n kube-system pod/coredns-6975654877-nzhgr
.:53
2018/08/09 02:11:11 [INFO] CoreDNS-1.2.0
2018/08/09 02:11:11 [INFO] linux/amd64, go1.10.3, 2e322f6
CoreDNS-1.2.0
linux/amd64, go1.10.3, 2e322f6
2018/08/09 02:11:11 [INFO] plugin/reload: Running configuration MD5 = 271feea1e1cf54e66a65c7ffcf2b89ad

验证 dns 服务

在验证 dns 之前，在 dns 未部署之前创建的 pod 与 deployment 等，都必须删除，重新部署，否则无法解析

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46


# 创建一个 pods 来测试一下 dns

apiVersion: v1
kind: Pod
metadata:
  name: alpine
spec:
  containers:
  - name: alpine
    image: alpine
    command:
    - sleep
    - "3600"



# 查看 创建的服务

[root@kubernetes-64 yaml]# kubectl get pods,svc
NAME                           READY     STATUS    RESTARTS   AGE
po/alpine                      1/1       Running   0          19s
po/nginx-dm-84f8f49555-tmqzm   1/1       Running   0          23s
po/nginx-dm-84f8f49555-wdk67   1/1       Running   0          23s

NAME             TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
svc/kubernetes   ClusterIP   10.254.0.1      <none>        443/TCP   5h
svc/nginx-svc    ClusterIP   10.254.40.179   <none>        80/TCP    23s



# 测试

[root@kubernetes-64 ~]# kubectl exec -it alpine nslookup nginx-svc
nslookup: can't resolve '(null)': Name does not resolve

Name:      nginx-svc
Address 1: 10.254.40.179 nginx-svc.default.svc.cluster.local


[root@kubernetes-64 yaml]# kubectl exec -it alpine nslookup kubernetes
nslookup: can't resolve '(null)': Name does not resolve

Name:      kubernetes
Address 1: 10.254.0.1 kubernetes.default.svc.cluster.local

部署 DNS 自动伸缩

按照 node 数量 自动伸缩 dns 数量

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89

vi dns-auto-scaling.yaml



kind: ServiceAccount
apiVersion: v1
metadata:
  name: kube-dns-autoscaler
  namespace: kube-system
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: system:kube-dns-autoscaler
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
rules:
  - apiGroups: [""]
    resources: ["nodes"]
    verbs: ["list"]
  - apiGroups: [""]
    resources: ["replicationcontrollers/scale"]
    verbs: ["get", "update"]
  - apiGroups: ["extensions"]
    resources: ["deployments/scale", "replicasets/scale"]
    verbs: ["get", "update"]
  - apiGroups: [""]
    resources: ["configmaps"]
    verbs: ["get", "create"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: system:kube-dns-autoscaler
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
subjects:
  - kind: ServiceAccount
    name: kube-dns-autoscaler
    namespace: kube-system
roleRef:
  kind: ClusterRole
  name: system:kube-dns-autoscaler
  apiGroup: rbac.authorization.k8s.io

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: kube-dns-autoscaler
  namespace: kube-system
  labels:
    k8s-app: kube-dns-autoscaler
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
spec:
  selector:
    matchLabels:
      k8s-app: kube-dns-autoscaler
  template:
    metadata:
      labels:
        k8s-app: kube-dns-autoscaler
      annotations:
        scheduler.alpha.kubernetes.io/critical-pod: ''
    spec:
      priorityClassName: system-cluster-critical
      containers:
      - name: autoscaler
        image: jicki/cluster-proportional-autoscaler-amd64:1.1.2-r2
        resources:
            requests:
                cpu: "20m"
                memory: "10Mi"
        command:
          - /cluster-proportional-autoscaler
          - --namespace=kube-system
          - --configmap=kube-dns-autoscaler
          - --target=Deployment/coredns
          - --default-params={"linear":{"coresPerReplica":256,"nodesPerReplica":16,"preventSinglePointFailure":true}}
          - --logtostderr=true
          - --v=2
      tolerations:
      - key: "CriticalAddonsOnly"
        operator: "Exists"
      serviceAccountName: kube-dns-autoscaler


1
2
3
4
5
6
7
8

# 导入文件

[root@kubernetes-64 coredns]# kubectl apply -f dns-auto-scaling.yaml
serviceaccount/kube-dns-autoscaler created
clusterrole.rbac.authorization.k8s.io/system:kube-dns-autoscaler created
clusterrolebinding.rbac.authorization.k8s.io/system:kube-dns-autoscaler created
deployment.apps/kube-dns-autoscaler created

部署 Dashboard

官方 dashboard 的github https://github.com/kubernetes/dashboard

下载 dashboard 镜像

1
2
3
4
5

# 官方镜像
k8s.gcr.io/kubernetes-dashboard-amd64:v1.10.0

# 个人的镜像
jicki/kubernetes-dashboard-amd64:v1.10.0

下载 yaml 文件

1
2

curl -O https://raw.githubusercontent.com/kubernetes/dashboard/master/src/deploy/recommended/kubernetes-dashboard.yaml

导入 yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

# 替换所有的 images

sed -i 's/k8s\.gcr\.io/jicki/g' *


# 导入文件

[root@kubernetes-64 dashboard]# kubectl apply -f kubernetes-dashboard.yaml
secret "kubernetes-dashboard-certs" created
serviceaccount "kubernetes-dashboard" created
role "kubernetes-dashboard-minimal" created
rolebinding "kubernetes-dashboard-minimal" created
deployment "kubernetes-dashboard" created
service "kubernetes-dashboard" created




[root@kubernetes-64 ~]# kubectl get pods,svc -n kube-system
NAME                                       READY     STATUS    RESTARTS   AGE
po/coredns-5984fb8cbb-77dl4                1/1       Running   0          3h
po/coredns-5984fb8cbb-9hdwt                1/1       Running   0          3h
po/kubernetes-dashboard-78bcdc4d64-x6fhq   1/1       Running   0          14s

NAME                       TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)         AGE
svc/kube-dns               ClusterIP   10.254.0.2      <none>        53/UDP,53/TCP   3h
svc/kubernetes-dashboard   ClusterIP   10.254.18.143   <none>        443/TCP         14s

部署 Ingress

Kubernetes 暴露服务的方式目前只有三种：LoadBlancer Service、NodePort Service、Ingress； 什么是 Ingress ? Ingress 就是利用 Nginx Haproxy 等负载均衡工具来暴露 Kubernetes 服务。

官方地址 https://kubernetes.github.io/ingress-nginx/

配置 调度 node

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

# ingress 有多种方式 1.  deployment 自由调度 replicas
                     2.  daemonset 全局调度 分配到所有node里


#  deployment 自由调度过程中，由于我们需要 约束 controller 调度到指定的 node 中，所以需要对 node 进行 label 标签


# 默认如下:
[root@kubernetes-64 ingress]# kubectl get nodes
NAME            STATUS    ROLES     AGE       VERSION
kubernetes-64   Ready     master    1d        v1.13.1
kubernetes-65   Ready     master    1d        v1.13.1
kubernetes-66   Ready     node      1d        v1.13.1


# 对 65 与 66 打上 label

[root@kubernetes-64 ingress]# kubectl label nodes kubernetes-65 ingress=proxy
node "kubernetes-65" labeled
[root@kubernetes-64 ingress]# kubectl label nodes kubernetes-66 ingress=proxy
node "kubernetes-66" labeled


# 打完标签以后

[root@kubernetes-64 ingress]# kubectl get nodes --show-labels
NAME            STATUS                     ROLES     AGE       VERSION   LABELS
kubernetes-64   Ready,SchedulingDisabled   <none>    32m       v1.13.1   beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/hostname=kubernetes-64
kubernetes-65   Ready                      <none>    17m       v1.13.1   beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,ingress=proxy,kubernetes.io/hostname=kubernetes-65
kubernetes-66   Ready                      <none>    4m        v1.13.1   beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,ingress=proxy,kubernetes.io/hostname=kubernetes-66


1
2
3
4
5
6
7
8

# 下载镜像

# 官方镜像
quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.21.0

# 国内镜像
jicki/nginx-ingress-controller:0.21.0


1
2
3
4

# 下载 yaml 文件

wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/mandatory.yaml


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

# 替换所有的 images

sed -i 's/quay\.io\/kubernetes-ingress-controller/jicki/g' *


# 上面 对 两个 node 打了 label 所以配置 replicas: 2
# 修改 yaml 文件 增加 rbac 认证 , hostNetwork  还有 nodeSelector, 第二个 spec 下 增加。

vi mandatory.yaml



spec:
  replicas: 2
  ....
    spec:
      serviceAccountName: nginx-ingress-serviceaccount
      hostNetwork: true
      nodeSelector:
        ingress: proxy
    ....


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

# 导入 yaml 文件

[root@kubernetes-64 nginx-ingress]# kubectl apply -f mandatory.yaml
namespace/ingress-nginx created
configmap/nginx-configuration created
configmap/tcp-services created
configmap/udp-services created
serviceaccount/nginx-ingress-serviceaccount created
clusterrole.rbac.authorization.k8s.io/nginx-ingress-clusterrole created
role.rbac.authorization.k8s.io/nginx-ingress-role created
rolebinding.rbac.authorization.k8s.io/nginx-ingress-role-nisa-binding created
clusterrolebinding.rbac.authorization.k8s.io/nginx-ingress-clusterrole-nisa-binding created
deployment.extensions/nginx-ingress-controller created



# 查看服务，可以看到这两个 pods 被分别调度到 65 与 66 中
[root@kubernetes-64 ingress]# kubectl get pods -n ingress-nginx -o wide
NAME                                        READY     STATUS    RESTARTS   AGE       IP             NODE
nginx-ingress-controller-8476958f94-8fh5h   1/1       Running   0          5m        172.16.1.66    kubernetes-66
nginx-ingress-controller-8476958f94-qfhhp   1/1       Running   0          5m        172.16.1.65    kubernetes-65

1
2
3
4
5
6
7
8
9

# 查看我们原有的 svc

[root@kubernetes-64 ingress]# kubectl get pods
NAME                        READY     STATUS    RESTARTS   AGE
alpine                      1/1       Running   0          24m
nginx-dm-84f8f49555-tmqzm   1/1       Running   0          24m
nginx-dm-84f8f49555-wdk67   1/1       Running   0          24m



 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

# 创建一个 基于 nginx-dm 的 ingress

vi nginx-ingress.yaml


apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: nginx-ingress
spec:
  rules:
  - host: nginx.jicki.cn
    http:
      paths:
      - backend:
          serviceName: nginx-svc
          servicePort: 80



# 查看服务

[root@kubernetes-64 ingress]# kubectl get ingress
NAME            HOSTS            ADDRESS   PORTS     AGE
nginx-ingress   nginx.jicki.cn             80        6s

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

# 测试访问

[root@kubernetes-64 ingress]# curl nginx.jicki.cn
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
    body {
        width: 35em;
        margin: 0 auto;
        font-family: Tahoma, Verdana, Arial, sans-serif;
    }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>




 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

# 配置一个基于域名的 https , ingress


# 创建一个 基于 自身域名的 证书

openssl req -x509 -nodes -days 3650 -newkey rsa:2048 -keyout dashboard.jicki.cn-key.key -out dashboard.jicki.cn.pem -subj "/CN=dashboard.jicki.cn"


# 导入 域名的证书 到 集群 的 secret 中

kubectl create secret tls dashboard-secret --namespace=kube-system --cert dashboard.jicki.cn.pem --key dashboard.jicki.cn-key.key



# 查看 secret

[root@kubernetes-64 dashboard]# kubectl get secret -n kube-system
NAME                                     TYPE                                  DATA      AGE
dashboard-secret                         kubernetes.io/tls                     2         1m



# 创建一个 ingress


vi dashboard-ingress.yaml



apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: kubernetes-dashboard
  namespace: kube-system
  annotations:
    ingress.kubernetes.io/ssl-passthrough: "true"
    nginx.ingress.kubernetes.io/secure-backends: "true"
spec:
  tls:
  - hosts:
    - dashboard.jicki.cn
    secretName: dashboard-secret
  rules:
  - host: dashboard.jicki.cn
    http:
      paths:
      - path: /
        backend:
          serviceName: kubernetes-dashboard
          servicePort: 443


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

# 测试访问

[root@kubernetes-64 dashboard]# curl -I -k https://dashboard.jicki.cn
HTTP/1.1 200 OK
Server: nginx/1.13.12
Date: Wed, 11 Jul 2018 07:19:03 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 990
Connection: keep-alive
Vary: Accept-Encoding
Accept-Ranges: bytes
Cache-Control: no-store
Last-Modified: Tue, 13 Feb 2018 11:17:03 GMT
Strict-Transport-Security: max-age=15724800; includeSubDomains


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66

# 登录认证

# 首先创建一个 dashboard rbac 超级用户

vi dashboard-admin-rbac.yaml

---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-admin
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard-admin
  labels:
    k8s-app: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: kubernetes-dashboard-admin
  namespace: kube-system


# 导入文件

[root@kubernetes-64 dashboard]# kubectl apply -f dashboard-admin-rbac.yaml
serviceaccount "kubernetes-dashboard-admin" created
clusterrolebinding "kubernetes-dashboard-admin" created



# 查看超级用户的 token 名称

[root@kubernetes-64 dashboard]# kubectl -n kube-system get secret | grep kubernetes-dashboard-admin
kubernetes-dashboard-admin-token-mnhdz   kubernetes.io/service-account-token   3         1m


# 查看 token 部分

[root@kubernetes-64 dashboard]# kubectl describe -n kube-system secret/kubernetes-dashboard-admin-token-mnhdz
Name:         kubernetes-dashboard-admin-token-mnhdz
Namespace:    kube-system
Labels:       <none>
Annotations:  kubernetes.io/service-account.name=kubernetes-dashboard-admin
              kubernetes.io/service-account.uid=dc14511d-0020-11e8-b47b-44a8420b9988

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1363 bytes
namespace:  11 bytes
token:      eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJrdWJlcm5ldGVzLWRhc2hib2FyZC1hZG1pbi10b2tlbi1tbmhkeiIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJrdWJlcm5ldGVzLWRhc2hib2FyZC1hZG1pbiIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50LnVpZCI6ImRjMTQ1MTFkLTAwMjAtMTFlOC1iNDdiLTQ0YTg0MjBiOTk4OCIsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDprdWJlLXN5c3RlbTprdWJlcm5ldGVzLWRhc2hib2FyZC1hZG1pbiJ9.Vg7vYBIaBICYFCX_XORvoUjkYAKdQoAuT2sy8o4y8Z6DmMaCQXijOBGCWsS40-n_qiBhlrSwLeN0RvjCOfLmcH4gUSjPBkSmc-S6SHh09ErzrHjCQSblCCZgXjyyse2w1LwWw87CiAiwHCb0Jm7r0lhm4DjhXeLpUhdXoqOltHlBoJqxzDwb9qKgtY-nsQ2Y9dhV405GeqB9RLOxSKHWx6K1lXP_0tLUGgIatJx6f-EMurFbmODJfex9mT2LTq9pblblegw9EG9j2IhfHQSnwR8hPMT3Tku-XEf3vtV-1eFqetZHRJHS23machhvSvuppFjmPAd_ID3eETBt7ncNmQ



# 登录 web ui 选择 令牌登录

https://jicki.cn/img/posts/kubernetes/dashboard-new.jpeg

部署 monitoring

k8s 运维相关

基础维护

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

# 当需要对主机进行维护升级时，首先将节点主机设置成不可调度模式：

kubectl cordon［nodeid］

# 然后需要将主机上正在运行的容器驱赶到其它可用节点：

kubectl drain ［nodeid］

# 给予900秒宽限期优雅的调度
kubectl drain node1.k8s.novalocal --grace-period=120


# 当容器迁移完毕后，运维人员可以对该主机进行操作，配置升级性能参数调优等等。当对主机的维护操作完毕后， 再将主机设置成可调度模式：

kubectl uncordon [nodeid]

Other

特殊 env

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

# yaml 中的一些 特殊 env


    env:
    - name: MY_POD_NAME
      valueFrom:
        fieldRef:
          fieldPath: metadata.name
    - name: MY_POD_NAMESPACE
      valueFrom:
        fieldRef:
          fieldPath: metadata.namespace
    - name: MY_POD_IP
      valueFrom:
        fieldRef:
          fieldPath: status.podIP
更新于 2018-12-19
阅读原始文档
 kubernetes, docker
返回 | 主页
