Istio 持续更新...

Istio

官方文档 https://istio.io/zh/docs

Istio 是什么?(衣撕朵)

  • 云平台令使用它们的公司受益匪浅。但不可否认的是,上云会给 DevOps 团队带来压力。为了可移植性,开发人员必须使用微服务来构建应用,同时运维人员也正在管理着极端庞大的混合云和多云的部署环境。 Istio 允许您连接、保护、控制和观察服务。

  • 从较高的层面来说,Istio 有助于降低这些部署的复杂性,并减轻开发团队的压力。它是一个完全开源的服务网格,作为透明的一层接入到现有的分布式应用程序里。它也是一个平台,拥有可以集成任何日志、遥测和策略系统的 API 接口。Istio 多样化的特性使您能够成功且高效地运行分布式微服务架构,并提供保护、连接和监控微服务的统一方法。

服务网格 又是什么?

  • 服务网格 - 用来描述组成这些应用程序的微服务网络以及它们之间的交互。随着服务网格的规模和复杂性不断的增长,它将会变得越来越难以理解和管理。它的需求包括服务发现、负载均衡、故障恢复、度量和监控等。服务网格通常还有更复杂的运维需求,比如 A/B 测试、金丝雀发布、速率限制、访问控制和端到端认证。

Istio 架构

https://jicki.cn/img/posts/istio/istio.svg

  • Istio 服务网格从逻辑上分为数据平面和控制平面。

    • 数据平面  由一组智能代理(Envoy)组成,被部署为 sidecar。这些代理通过一个通用的策略和遥测中心(Mixer)传递和控制微服务之间的所有网络通信。

    • 控制平面  管理并配置代理来进行流量路由。此外,控制平面配置 Mixer 来执行策略和收集遥测数据。

Istio 组件

Envoy

  • Istio 使用 Envoy 代理的扩展版本。

  • Envoy   是用 C++ 开发的高性能代理,用于协调服务网格中所有服务的入站和出站流量。

  • Envoy 代理是唯一与数据平面流量交互的 Istio 组件。

  • Envoy 代理被部署为服务的 sidecar,在逻辑上为服务增加了 Envoy 的许多内置特性:

    1. 动态服务发现
    2. 负载均衡
    3. TLS 终端
    4. HTTP/2 与 gRPC 代理
    5. 熔断器
    6. 健康检查
    7. 基于百分比流量分割的分阶段发布
    8. 故障注入
    9. 丰富的指标
  • sidecar 代理模型

    • sidecar   允许 Istio 提取大量关于流量行为的信号作为属性。反之,Istio 可以在 Mixer 中使用这些属性来执行决策,并将它们发送到监控系统,以提供整个网格的行为信息。

    • sidecar   还允许您向现有的部署添加 Istio 功能,而不需要重新设计架构或重写代码。

  • Envoy 代理在 istio 中可以实现

    1. 流量控制功能:  通过丰富的 HTTP、gRPC、WebSocket 和 TCP 流量路由规则来执行细粒度的流量控制。
    2. 网络弹性特性:  重试设置、故障转移、熔断器和故障注入。
    3. 安全性和身份验证特性:  执行安全性策略以及通过配置 API 定义的访问控制和速率限制。

Mixer

  • Mixer   是一个平台无关的组件。Mixer 在整个服务网格中执行访问控制和策略使用,并从 Envoy 代理和其他服务收集遥测数据。代理提取请求级别属性,并将其发送到 Mixer 进行评估。您可以在我们的 Mixer 配置文档中找到更多关于属性提取和策略评估的信息。

  • Mixer   包括一个灵活的插件模型。该模型使 Istio 能够与各种主机环境和后端基础设施进行交互。因此,Istio 从这些细节中抽象出 Envoy 代理和 Istio 管理的服务。

Pilot

  • Pilot   主要是为 Envoy sidecar 提供服务发现、用于智能路由的流量管理功能(例如,A/B 测试、金丝雀发布等)以及弹性功能(超时、重试、熔断器等)。

  • Pilot   将控制流量行为的高级路由规则转换为特定于环境的配置,并在运行时将它们传播到 sidecar

  • Pilot   将特定于平台的服务发现机制抽象出来,并将它们合成为任何符合 Envoy APIsidecar 都可以使用的标准格式。

  • 平台适配器Envoy 交互图 (平台   支持 kubernetes、Consul、gcp、Nomad等)

    1. 平台启动一个服务的新实例,该实例通知其平台适配器。
    2. 平台适配器使用 Pilot 抽象模型注册实例。
    3. Pilot 将流量规则和配置派发给 Envoy 代理,来传达此次更改。
    4. 可以使用 Istio流量管理 API 通过 Pilot 优化 Envoy 配置,以便对服务网格中的流量进行更细粒度地控制。

https://jicki.cn/img/posts/istio/discovery.svg

Citadel

  • Citadel   通过内置的身份和证书管理,可以支持强大的服务到服务以及最终用户的身份验证。

  • Citadel   可以用来升级服务网格中的未加密流量。

  • Citadeloperator   结合使用可以执行基于服务身份的策略,而不是相对不稳定的 3 层或 4 层网络标识。

  • Citadel   使用 Istio 的授权特性来控制谁可以访问您的服务。

Galley

  • Galley   是 Istio 的配置验证、提取、处理和分发组件。它负责将其余的 Istio 组件与从底层平台(例如 Kubernetes)获取用户配置的细节隔离开来。

Istio Install

我这里 Kubernetes 版本为1.18 因为我目前只有这么一个集群

  • 安装 Istio 环境准备

    1. 搭建 Kubernetes 集群, ( 请按照官方提供的兼容测试版本安装 目前支持 1.14, 1.15, 1.16 )

    2. 下载 Istio 项目包. 项目包内包括(安装文件、示例和 istioctl 命令行工具。)

    3. 安装 Istio. 通过 istioctl 客户端工具直接安装istioKubernetes 中.

搭建 Kubernetes

这一部分这里就省略了, 如需这一部分 文档, 请参考其他的博文。

下载 Istio 项目包

  • macOSLinux 系统中, 也可以通过以下命令下载最新版本的 Istio
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
# 新建目录
mkdir -p /opt/istio && cd /opt/istio


# 设置安装版本
export ISTIO_VERSION=1.5.1


# 下载文件
curl -L https://istio.io/downloadIstio | sh -

  • 输出如下:
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
Istio 1.5.1 Download Complete!

Istio has been successfully downloaded into the istio-1.5.1 folder on your system.

Next Steps:
See https://istio.io/docs/setup/kubernetes/install/ to add Istio to your Kubernetes cluster.

To configure the istioctl client tool for your workstation,
add the /opt/istio/istio-1.5.1/bin directory to your environment path variable with:
         export PATH="$PATH:/opt/istio/istio-1.5.1/bin"

Begin the Istio pre-installation verification check by running:
         istioctl verify-install

Need more information? Visit https://istio.io/docs/setup/kubernetes/install/
  • 配置环境变量
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
vi /etc/profile

# 添加

# istio
export PATH="$PATH:/opt/istio/istio-1.5.1/bin"


# 生效配置
source /etc/profile

  • 验证安装
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
istioctl verify-install

Checking the cluster to make sure it is ready for Istio installation...

#1. Kubernetes-api
-----------------------
Can initialize the Kubernetes client.
Can query the Kubernetes API Server.

#2. Kubernetes-version
-----------------------
Istio is compatible with Kubernetes: v1.18.0.

#3. Istio-existence
-----------------------
Istio will be installed in the istio-system namespace.

#4. Kubernetes-setup
-----------------------
Can create necessary Kubernetes configurations: Namespace,ClusterRole,ClusterRoleBinding,CustomResourceDefinition,Role,ServiceAccount,Service,Deployments,ConfigMap.

#5. SideCar-Injector
-----------------------
This Kubernetes cluster supports automatic sidecar injection. To enable automatic sidecar injection see https://istio.io/docs/setup/kubernetes/additional-setup/sidecar-injection/#deploying-an-app

-----------------------
Install Pre-Check passed! The cluster is ready for Istio installation.

  • 配置 istioctl 命令自动补全
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
#  创建目录
mkdir -p /usr/share/istio

# 拷贝补全脚本
cp tools/istioctl.bash /usr/share/istio/


# 导入自动补全
source /usr/share/istio/istioctl.bash



# 添加到 bashrc 中
vi ~/.bashrc

# 添加如下:

# istio
source /usr/share/istio/istioctl.bash




# 测试tab补全

[root@k8s-node-1 istio-1.5.1]# istioctl
analyze          authz            dashboard        experimental     manifest         profile          proxy-status     upgrade          verify-install
authn            convert-ingress  deregister       kube-inject      operator         proxy-config     register         validate         version

  • 目录结构说明

    • bin  目录包含 istioctl 的客户端文件。istioctl 工具用于手动注入 Envoy sidecar 代理。

    • manifest.yaml  文件的 sha码。

    • samples  目录包含 istio 的实例应用程序。

    • tools  目录包含 一些脚本

      • convert_RbacConfig_to_ClusterRbacConfig.sh
      • dump_kubernetes.sh
      • _istioctl
      • istioctl.bash  istio 命令tab自动补全的脚本
    • install  目录包含如下目录: (istio除了支持 kubernetes 之外还支持 consul 和 gcp)

      • consul  目录
      • gcp  目录
      • kubernetes  目录包含 kuebrnetes 服务相关的 YAML 文件。
      • tools   目录

安装 istio

  • istio 包含两种安装方式

    1. 通过 istioctl 客户端命令安装 (推荐)

    2. 通过 helm 进行安装

1
2
3
# 通过如下命令进行安装 (manifest 是资源清单, profile 指定类型的清单)
istioctl manifest apply --set profile=demo

  • 输出如下:
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
- Applying manifest for component Base...
✔ Finished applying manifest for component Base.
- Applying manifest for component Pilot...
✔ Finished applying manifest for component Pilot.
- Applying manifest for component EgressGateways...
- Applying manifest for component IngressGateways...
- Applying manifest for component AddonComponents...
✔ Finished applying manifest for component EgressGateways.
✔ Finished applying manifest for component IngressGateways.
✔ Finished applying manifest for component AddonComponents.

✔ Installation complete
  • 查看部署情况

    • 如果集群运行在一个不支持外部负载均衡器的环境中(例如:minikube),istio-ingressgateway 的 EXTERNAL-IP 将显示为 <pending> 状态。请使用服务的 NodePort 或 端口转发来访问网关。
1
2
3
4
5
6
7
8
9
kubectl get pods -n istio-system
NAME                                   READY   STATUS    RESTARTS   AGE
grafana-5f6f8cbf75-lqnjg               1/1     Running   0          17m
istio-egressgateway-74896c8487-mjlg8   1/1     Running   0          17m
istio-ingressgateway-54d494869-7npql   1/1     Running   0          17m
istio-tracing-9dd6c4f7c-x5kcp          1/1     Running   0          17m
istiod-756bd84654-n2k6m                1/1     Running   0          18m
kiali-869c6894c5-64vmw                 1/1     Running   0          17m
prometheus-c89875c74-rgzdx             2/2     Running   0          17m
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
kubectl get svc -n istio-system
NAME                        TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)                                                                                                                                      AGE
grafana                     ClusterIP      10.254.35.48    <none>        3000/TCP                                                                                                                                     158m
istio-egressgateway         ClusterIP      10.254.10.123   <none>        80/TCP,443/TCP,15443/TCP                                                                                                                     158m
istio-ingressgateway        LoadBalancer   10.254.26.46    <pending>     15020:32142/TCP,80:30000/TCP,443:32701/TCP,15029:30413/TCP,15030:30781/TCP,15031:31714/TCP,15032:32419/TCP,31400:30673/TCP,15443:31123/TCP   158m
istio-pilot                 ClusterIP      10.254.54.205   <none>        15010/TCP,15011/TCP,15012/TCP,8080/TCP,15014/TCP,443/TCP                                                                                     158m
istiod                      ClusterIP      10.254.3.7      <none>        15012/TCP,443/TCP                                                                                                                            158m
jaeger-agent                ClusterIP      None            <none>        5775/UDP,6831/UDP,6832/UDP                                                                                                                   158m
jaeger-collector            ClusterIP      10.254.2.80     <none>        14267/TCP,14268/TCP,14250/TCP                                                                                                                158m
jaeger-collector-headless   ClusterIP      None            <none>        14250/TCP                                                                                                                                    158m
jaeger-query                ClusterIP      10.254.61.2     <none>        16686/TCP                                                                                                                                    158m
kiali                       ClusterIP      10.254.7.135    <none>        20001/TCP                                                                                                                                    158m
prometheus                  ClusterIP      10.254.8.200    <none>        9090/TCP                                                                                                                                     158m
tracing                     ClusterIP      10.254.39.104   <none>        80/TCP                                                                                                                                       158m
zipkin                      ClusterIP      10.254.32.230   <none>        9411/TCP                                                                                                                                     158m
  • 组件说明

    • tracing  全链路监控。
    • istio-pilot  服务发现与服务配置。
    • kiali  可视化服务网格展示。
      • 服务拓扑图
      • 分布式跟踪
      • 指标度量收集和图标
      • 配置校验
      • 健康检查和显示
      • 服务发现
    • prometheus  大家都懂的监控。
    • grafanaprometheus监控的展示webui。
    • istio-ingressgateway  出口网关。
    • istio-egressgateway  入口网关。
    • jaeger
      • jaeger-agent  jaeger client的一个代理程序,client将收集到的调用链数据发给agent,然后由agent发给collector;
      • jaeger-collector  负责接收jaeger client或者jaeger agent上报上来的调用链数据,然后做一些校验,比如时间范围是否合法等,最终会经过内部的处理存储到后端存储;
      • jaeger-query  专门负责调用链查询的一个服务。
  • 修改 istio-ingressgateway 网络类型 为 NodePort

1
2
kubectl patch service istio-ingressgateway -n istio-system -p '{"spec":{"type":"NodePort"}}'

1
2
3
kubectl get svc -n istio-system istio-ingressgateway
NAME                   TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)                                                                                                                                      AGE
istio-ingressgateway   NodePort   10.254.26.46   <none>        15020:32142/TCP,80:30000/TCP,443:32701/TCP,15029:30413/TCP,15030:30781/TCP,15031:31714/TCP,15032:32419/TCP,31400:30673/TCP,15443:31123/TCP   176m

验证 istio

  • 查看版本
1
2
3
4
[root@k8s-node-1 ~]# istioctl version
client version: 1.5.1
control plane version: 1.5.1
data plane version: 1.5.1 (3 proxies)

Kiali 组件

Kiali 以 web ui 的方式可视化服务网格。

  • 查看 kiali svc
1
2
3
[root@k8s-node-1 kubeadm]# kubectl get svc -n istio-system  kiali
NAME    TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)     AGE
kiali   ClusterIP   10.254.7.135   <none>        20001/TCP   4h24m
  • 配置访问(我这里的node节点为云主机,所以我配置了一个 ingress)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
[root@k8s-node-1 ~]# cat kiali-ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: kiali-ingress
  namespace: istio-system
spec:
  rules:
  - host: kiali.jicki.cn
    http:
      paths:
      - backend:
          serviceName: kiali
          servicePort: 20001

  • 创建ingress服务
1
2
3
4
5
6
7
8
9
[root@k8s-node-1 kubeadm]# kubectl apply -f kiali-ingress.yaml
ingress.extensions/kiali-ingress created


# 查看服务
[root@k8s-node-1 ~]# kubectl get ingress -n istio-system
NAME            CLASS    HOSTS             ADDRESS       PORTS   AGE
kiali-ingress   <none>   kiali.jicki.cn    10.254.8.81   80      2m31s

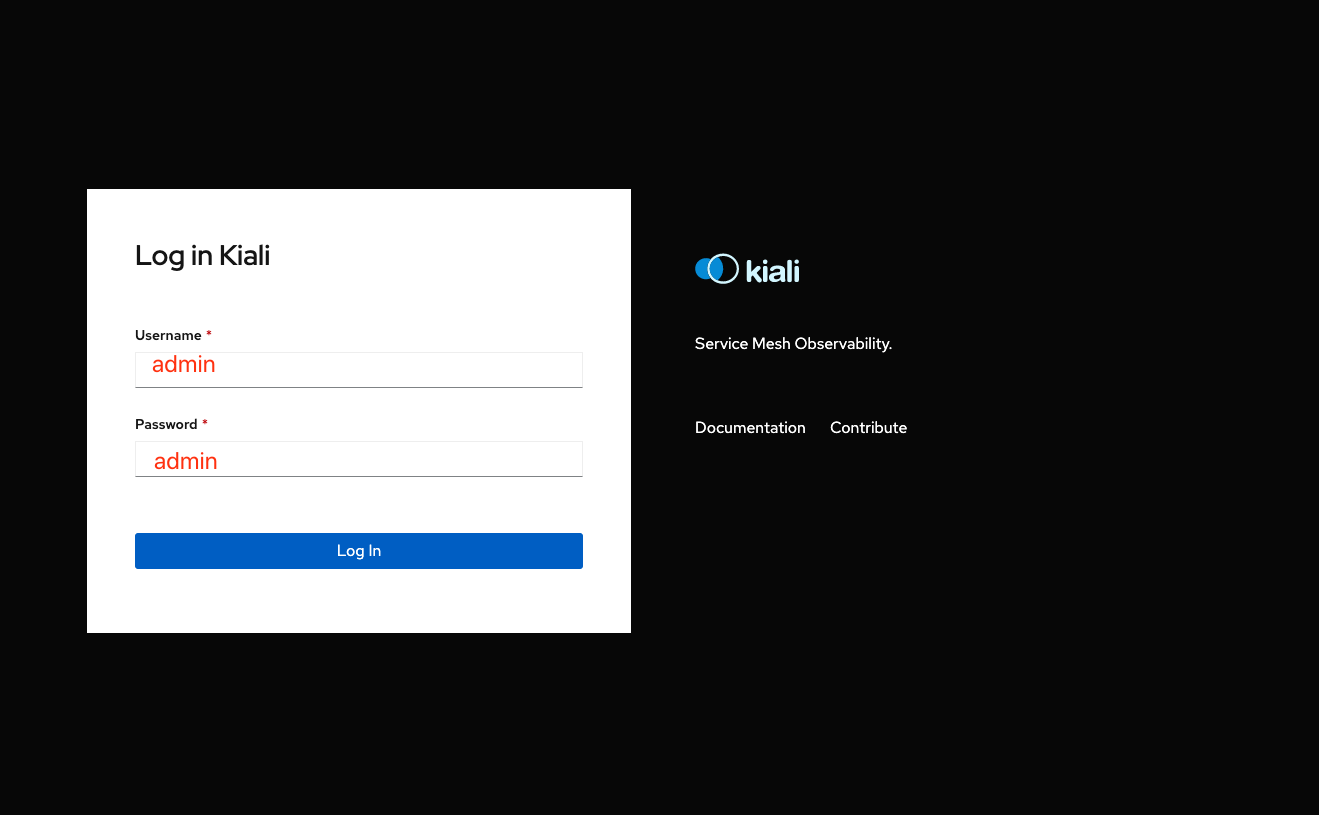

https://jicki.cn/img/posts/istio/kiali.png

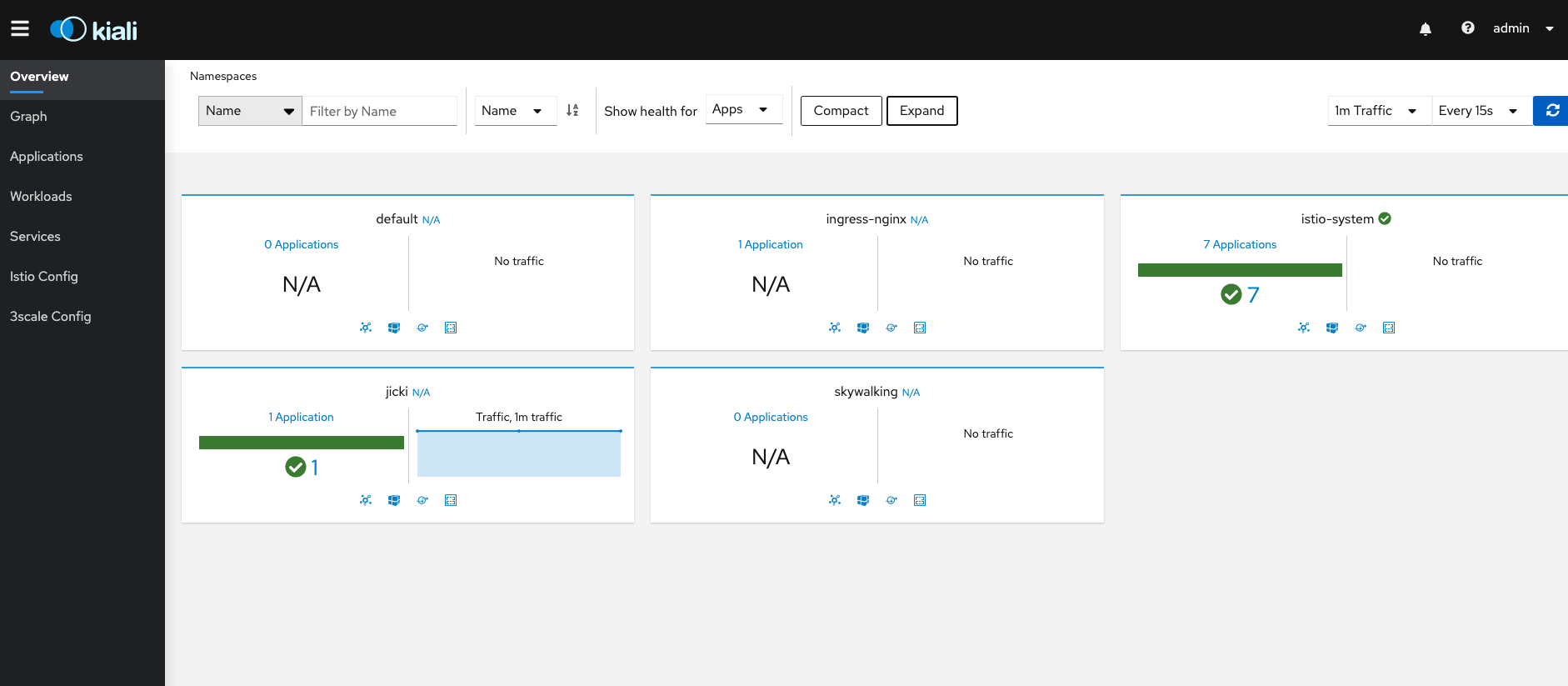

https://jicki.cn/img/posts/istio/kiali-1.png

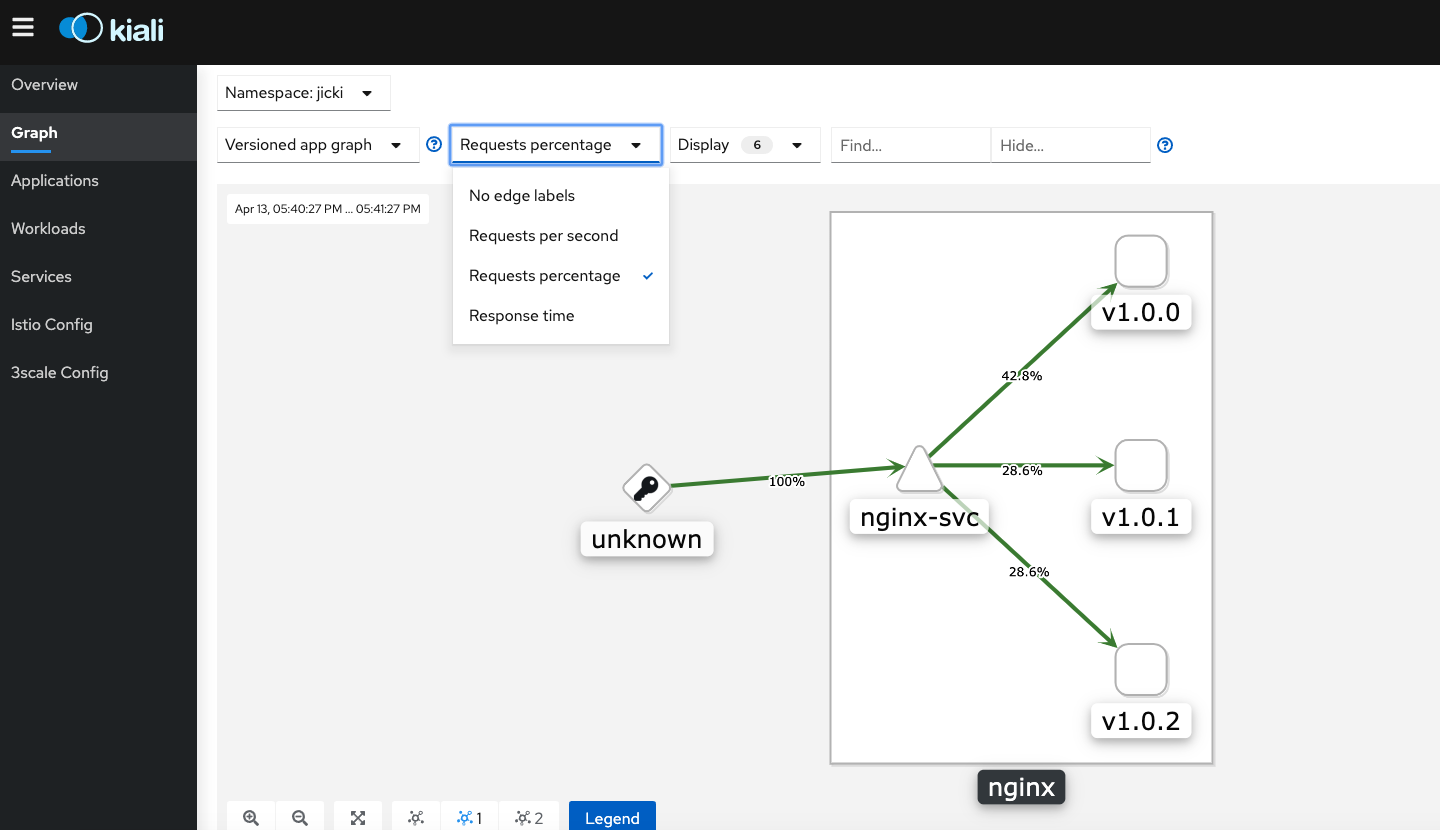

https://jicki.cn/img/posts/istio/kiali-2.png

https://jicki.cn/img/posts/istio/kiali-3.png

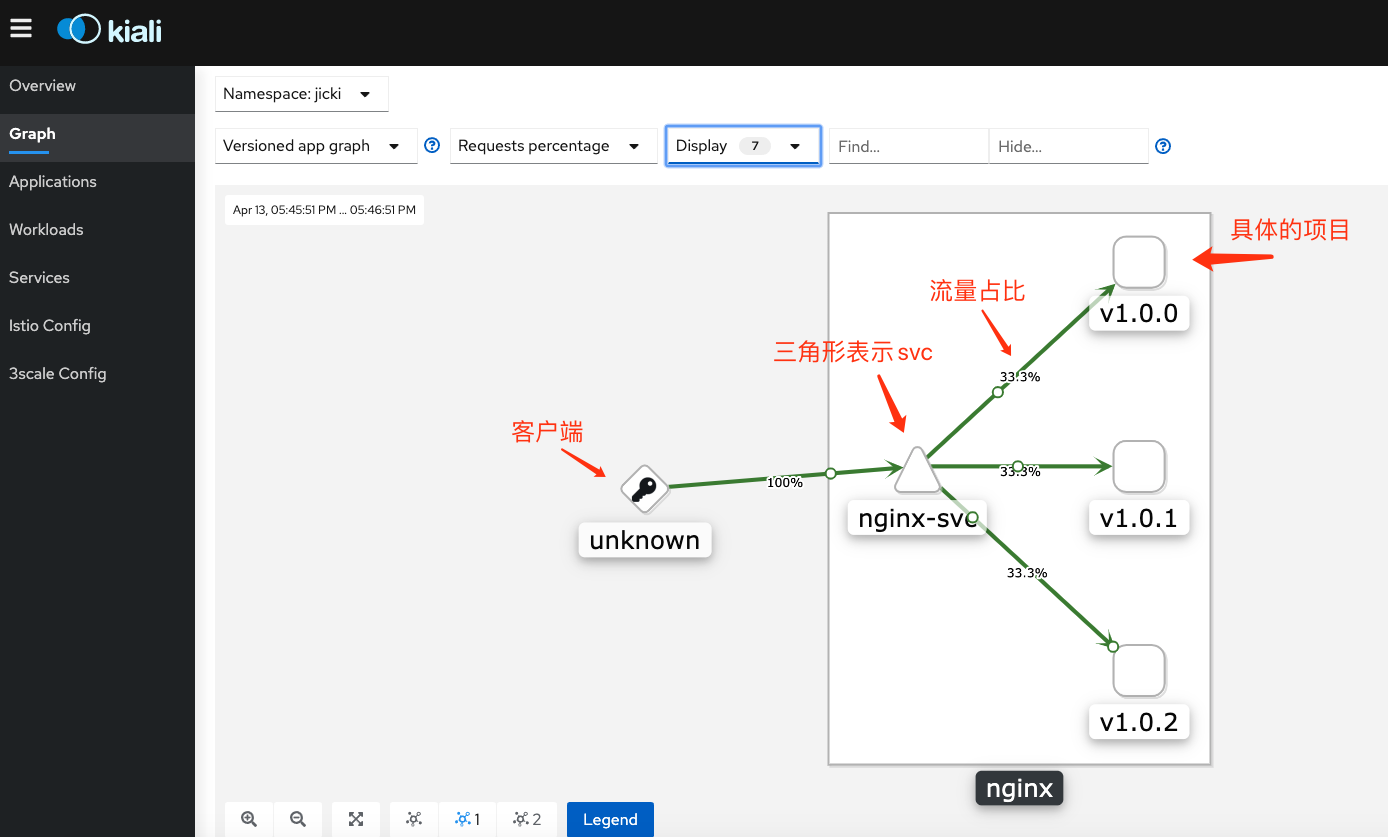

https://jicki.cn/img/posts/istio/kiali-4.png

Istio Profile

Profile 相关的介绍以及具体的区别

  • istioctl profile list 命令可查看当前版本的 profile
1
2
3
4
5
6
7
8
9
[root@k8s-node-1 istio]# istioctl profile list
Istio configuration profiles:
    minimal
    remote
    separate
    default
    demo
    empty

  • profile  包含如下:
    1. remote 远程kubernetes部署, 以及多kubernetes集群
    2. separatei 独立部署,不建议使用,后续可能删除
    3. default 默认安装, 根据IstioControlPlaneAPI的默认设置启用组件, 建议用于生产部署
    4. demo 演示实例,展示istio 所有功能且资源需求适中的配置
    5. empty 不部署任何内容。用于导出空的配置文件。
    6. minimal 最小化安装。
istio组件defaultdemominimalremoteempty
istio-egressgateway
istio-ingressgateway
istio-pilot
grafana
istio-tracing
Kiali
prometheus
jaeger
zipkin
  • istioctl profile dump profileName 可以打印或者导出profile配置

    • 这里导出的文件就是kubernetes 的 YAML 编排文件。api 为 istio 的 api。

    • 这里可以导出 default 然后根据自己的环境自定义适合自己的 profile。

1
2
3
4
5
[root@k8s-node-1 istio]# istioctl profile dump default > default.yaml




istio injection

  • injection 注入后的变化

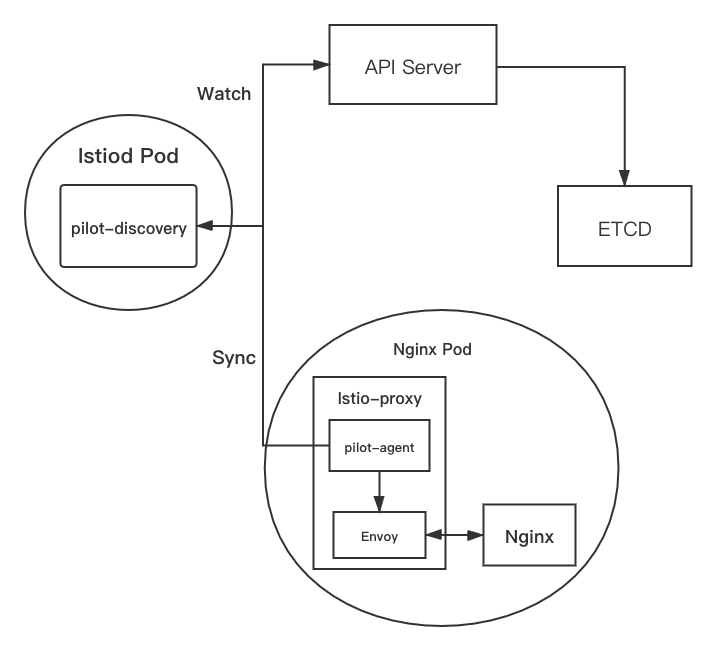

    • 原生 pod   –> pods 包含 程序 项目。

    • 注入以后 pod   –> pods 包含 程序 项目、istio-initistio-proxy

      • istio-init  用于初始化网络配置, iptables 路由配置。

      • istio-proxy  用于当前pod 与集群内部其他资源进行交互。

  • 可以被 injection 的服务

    • Deployment - 注入后会添加 istio-initistio-proxy

    • ReplicaSet - 注入后会添加 istio-initistio-proxy

    • DeamonSet - 注入后会添加 istio-initistio-proxy

    • Pod - 注入后会添加 istio-initistio-proxy

    • Job - 注入后会添加 istio-initistio-proxy

    • Service - 注入后不会添加任何组件。

    • Secrets - 注入后不会添加任何组件。

    • ConfigMap - 注入后不会添加任何组件。

  • deployment yaml 编排文件注入

    • istioctl kube-inject -f nginx-test.yamlDeployment编排文件进行注入(会修改yaml文件内容)

    • kubectl apply -f <(istioctl kube-inject -f nginx-test.yaml) 注入并 创建 服务到kubernetes中, 这样操作不会改变原有的编排文件。

1
2
3
# 创建一个 namespaces
[root@k8s-node-1 istio]# kubectl create ns jicki
namespace/jicki created
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
# 创建一个 deployment

[root@k8s-node-1 istio]# cat nginx-test.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
  namespace: jicki
  labels:
    app: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
        version: v1.0.0
    spec:
      containers:
        - name: nginx
          image: nginx:alpine
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
              name: http
  • 导出注入后的编排文件
1
2
[root@k8s-node-1 istio]# istioctl kube-inject -f nginx-test.yaml > nginx-test-inject.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
# 注入后 yaml 发生变化, 会增加很多istio的配置
# 包含新增的两个容器分别为 istio-proxy 与 istio-init

        image: docker.io/istio/proxyv2:1.5.1
        imagePullPolicy: IfNotPresent
        name: istio-proxy

        image: docker.io/istio/proxyv2:1.5.1
        imagePullPolicy: IfNotPresent
        name: istio-init

  • 创建服务
1
2
[root@k8s-node-1 istio]# kubectl apply -f <(istioctl kube-inject -f nginx-test.yaml)
deployment.apps/nginx-deployment created
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
[root@k8s-node-1 istio]# kubectl describe pods/nginx-deployment-59897745f9-vlvn9 -n jicki


Events:
  Type    Reason     Age        From                 Message
  ----    ------     ----       ----                 -------
  Normal  Scheduled  <unknown>  default-scheduler    Successfully assigned jicki/nginx-deployment-59897745f9-vlvn9 to k8s-node-1
  Normal  Pulled     2m19s      kubelet, k8s-node-1  Container image "docker.io/istio/proxyv2:1.5.1" already present on machine
  Normal  Created    2m19s      kubelet, k8s-node-1  Created container istio-init
  Normal  Started    2m18s      kubelet, k8s-node-1  Started container istio-init
  Normal  Pulled     2m18s      kubelet, k8s-node-1  Container image "nginx:alpine" already present on machine
  Normal  Created    2m18s      kubelet, k8s-node-1  Created container nginx
  Normal  Started    2m17s      kubelet, k8s-node-1  Started container nginx
  Normal  Pulled     2m17s      kubelet, k8s-node-1  Container image "docker.io/istio/proxyv2:1.5.1" already present on machine
  Normal  Created    2m17s      kubelet, k8s-node-1  Created container istio-proxy
  Normal  Started    2m17s      kubelet, k8s-node-1  Started container istio-proxy
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
# 查看 istio 对外服务的端口以及相关进程
# 可以发现除了80端口还有其他5个额外的端口

[root@k8s-node-1 istio]# kubectl exec -it nginx-deployment-59897745f9-vlvn9 -n jicki -c istio-proxy -- netstat -ntlp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:15001           0.0.0.0:*               LISTEN      17/envoy
tcp        0      0 0.0.0.0:15006           0.0.0.0:*               LISTEN      17/envoy
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      -
tcp        0      0 0.0.0.0:15090           0.0.0.0:*               LISTEN      17/envoy
tcp        0      0 127.0.0.1:15000         0.0.0.0:*               LISTEN      17/envoy
tcp6       0      0 :::15020                :::*                    LISTEN      1/pilot-agent


Address端口类型进程说明
127.0.0.115000TCPenvoyenvoy 命令行管理端口,可以获取程序运行信息。
0.0.0.015001TCPenvoy
0.0.0.015006TCPenvoy
0.0.0.015020HTTPpilot-agent
0.0.0.015090HTTPenvoy

https://jicki.cn/img/posts/istio/istio-proxy.png

  • pilot-agent

    • 生成 envoy 配置文件
    • 启动 envoy 进程
    • 监控和管理envoy进程的运行状态, 故障恢复, envoy配置变更以及重新加载。
  • envoy   轻量级的代理服务器。

  • service yaml 编排文件注入

    • 上面已经提到过 service 注入是不会添加任何其他的服务到 service 中的。
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
# 创建一个基于 nginx 的 svc
[root@k8s-node-1 istio]# cat nginx-test-svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: nginx-svc
  namespace: jicki
  labels:
    app: nginx
spec:
  ports:
    - port: 80
      name: http
      targetPort: 80
      protocol: TCP
  selector:
    app: nginx
1
2
3
4
# 创建服务
[root@k8s-node-1 istio]# kubectl apply -f <(istioctl kube-inject -f nginx-test-svc.yaml)
service/nginx-svc created

1
2
3
# 输出一个注入后的文件
[root@k8s-node-1 istio]# istioctl kube-inject -f nginx-test-svc.yaml -o nginx-test-svc-inject.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
# 查看文件 (可以看出来在注入后文件是没有变化的)
[root@k8s-node-1 kubeadm]# cat nginx-test-svc-inject.yaml
apiVersion: v1
kind: Service
metadata:
  name: nginx-svc
  namespace: jicki
  labels:
    app: nginx
spec:
  ports:
    - port: 80
      name: http
      targetPort: 80
      protocol: TCP
  selector:
    app: nginx
---
  • injection 注入检测 (istioctl analyze -n namespace 命令)

    • 运行此命令会检测 namespace 是否有 istio 的资源配置情况。

    • 如下提示 default 命令中间下,并没有 注入 istio,以及使用 kubectl label 标签进行注入。

1
2
3
4
5
6
7
[root@k8s-node-1 ~]# istioctl analyze -n jicki

Warn [IST0102] (Namespace jicki) The namespace is not enabled for Istio injection. Run 'kubectl label namespace jicki istio-injection=enabled' to enable it, or 'kubectl label namespace jicki istio-injection=disabled' to explicitly mark it as not needing injection
Error: Analyzers found issues when analyzing namespace: jicki.
See https://istio.io/docs/reference/config/analysis for more information about causes and resolutions.


  • injection 自动注入

    • namespces 设置 labels 标签, 可以使在这个 namespaces 生成的可注入的程序进行自动注入(injection)
1
2
3
4
5
6
7
8
# 创建一个 namespaces
[root@k8s-node-1 ~]# kubectl create namespace jicki
namespace/jicki created

# 注入
[root@k8s-node-1 ~]# kubectl label namespace jicki istio-injection=enabled
namespace/jicki labeled

1
2
3
4
5
6
apiVersion: v1
kind: Namespace
metadata:
  name: jicki
  labels:
    istio-injection: enabled
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
# 检测注入情况
[root@k8s-node-1 ~]# istioctl analyze -n jicki
✔ No validation issues found when analyzing namespace: jicki.


# 查看 namespace 的 labels
[root@k8s-node-1 ~]# kubectl get ns --show-labels
NAME              STATUS   AGE     LABELS
default           Active   9d      <none>
jicki             Active   4m46s   istio-injection=enabled

Istio 流量管理

Istio 的流量管理 就是配置 HTTP/TCP 路由功能。

Update Istio Version 1.9.9

  • Istio 流量

    1. data plane 数据面流量   是指 网格内服务之间业务互相调用所产生的流量。

    2. control plane 控制面流量   是指 Istio 各组件之间配置和控制网格行为所产生的流量。

  • Istio 流量管理分为六个部分

    1. Destination Rule

    2. Envoy Filter

    3. Gateway

    4. Service Entry

    5. Sidecar

    6. Virtual Service

Istio 流量模型

  • Istio 依赖与服务注入(inject)时所部署的 Envoy 代理。

  • 网格内发送与接收的所有的流量, 都通过 Envoy 进行代理。

  • Envoy代理 可以轻松的引导和控制网格的流量, 而不需要对服务进行任何修改。

Virtual Service

  • Istio所提供的基本连接和发现基础上, 通过虚拟服务(vitrual service), 能够将请求路由到Istio网格中的特定服务。每个虚拟服务(vitrual service)由一组路由规则组成, 这些路由规则使Istio能够将虚拟服务(vitrual service)的每个给定请求匹配到网格内特定的目标地址。

  • 虚拟服务(Virtual Service)  定义了一组寻址主机时要使用的流量路由规则,每个路由规则为特定协议的流量定义匹配了条件。如果流量匹配,则将其发送到注册表中定义的命名目标服务(或其子集/版本)。同时流量来源也可以在路由规则中匹配,从而能够允许针对特定的客户端上下文自定义路由。

    • 服务(Service):   应用绑定到服务注册表中的唯一名称。服务包含多个网络端点,这些端点由在Pod、容器和VM等上运行的工作负载实例进行实现。

    • 服务版本(Service versions)子集:  在持续部署的场景中,对于给定的服务,可能存在不同的应用程序实例。它们可能是对同一服务的迭代更改,这些版本部署在不同的环境(产品,阶段和开发等)中。场景包括A / B测试金丝雀发布 等。可以根据各种标准(标头,网址等)和/或通过分配给每个版本的权重来确定特定版本的选择。每个服务都有一个包含其所有实例的默认版本。

    • 来源(Source):  调用服务的下游客户端。

    • 主机(Host):  下游客户端连接服务时所使用的地址。

    • 访问模式(Access model):  应用程序仅需要处理目标服务(主机),而无需了解各个服务版本(子集)。版本的实际选择由代理/sidecar决定,从而使应用程序代码能够与所依赖服务的脱钩。

  • 一个例子

    • :  所有服务(deployment)、(service)、包括 client 都必须被 istio 注入(injection)。
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
# 2 个 nginx deployment 3 个 service

[root@k8s-node-1 istio]# cat nginx-test.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-1
  labels:
    web: nginx-1
spec:
  replicas: 1
  selector:
    matchLabels:
      web: nginx-1
  template:
    metadata:
      labels:
        app: nginx
        web: nginx-1
        version: v1.0.0
    spec:
      containers:
        - name: nginx
          image: nginx:alpine
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
              name: http
          command: ["/bin/sh", "-c", "echo 'hello nginx-1' > /usr/share/nginx/html/index.html; nginx  -g  'daemon off;'"]
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-2
  labels:
    web: nginx-2
spec:
  replicas: 1
  selector:
    matchLabels:
      web: nginx-2
  template:
    metadata:
      labels:
        app: nginx
        web: nginx-2
        version: v1.0.1
    spec:
      containers:
        - name: nginx
          image: nginx:alpine
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
              name: http
          command: ["/bin/sh", "-c", "echo 'hello nginx-2' > /usr/share/nginx/html/index.html; nginx  -g  'daemon off;'"]
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-3
  labels:
    web: nginx-3
spec:
  replicas: 1
  selector:
    matchLabels:
      web: nginx-3
  template:
    metadata:
      labels:
        app: nginx
        web: nginx-3
        version: v1.0.2
    spec:
      containers:
        - name: nginx
          image: nginx:alpine
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
              name: http
          command: ["/bin/sh", "-c", "echo 'hello jicki' > /usr/share/nginx/html/index.html; nginx  -g  'daemon off;'"]
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-svc-1
  labels:
    web: nginx-1
spec:
  ports:
    - port: 80
      name: http
      targetPort: 80
      protocol: TCP
  selector:
    web: nginx-1
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-svc-2
  labels:
    web: nginx-2
spec:
  ports:
    - port: 80
      name: http
      targetPort: 80
      protocol: TCP
  selector:
    web: nginx-2
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-svc-3
  labels:
    web: nginx-3
spec:
  ports:
    - port: 80
      name: http
      targetPort: 80
      protocol: TCP
  selector:
    web: nginx-3
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-svc
  labels:
    app: nginx
spec:
  ports:
    - port: 80
      name: http
      targetPort: 80
      protocol: TCP
  selector:
    app: nginx
  • 查看配置的三个 serviceendpoints
1
2
3
4
5
6
7
[root@k8s-node-1 istio]# kubectl get ep
NAME          ENDPOINTS                                            AGE
kubernetes    172.18.186.159:6443                                  16d
nginx-svc     10.254.64.163:80,10.254.64.164:80,10.254.64.165:80   6m23s
nginx-svc-1   10.254.64.163:80                                     26s
nginx-svc-2   10.254.64.164:80                                     26s
nginx-svc-3   10.254.64.165:80                                     26s
  • 配置一个 Virtual Service
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
[root@k8s-node-1 istio]# cat nginx-test-vs.yaml
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: nginx-svc-vs
spec:
  # 客户端访问服务的地址, ( svc名称 + namespace 用于跨 namespace 调用 )
  hosts:
  - nginx-svc.default
  # http协议
  http:
  # 如下为匹配条件
  - match:
    # http 头 包含如下信息
    - headers:
        # key = vs-user
        vs-user:
          # exact 完全匹配 value = jicki
          exact: jicki
    route:
    - destination:
        host: nginx-svc-3.default
  # 如下为匹配路由规则
  - route:
    - destination:
        # 匹配的服务版本或子集为 nginx-1
        host: nginx-svc-1.default
    - destination:
        # 匹配的服务版本或子集为 nginx-2
        host: nginx-svc-2.default

  • VirtualService 服务并非是 kubernetes 中实际的 service 服务。

    • kubectl get virtualservices 使用这个命令查看 Virtual Service
1
2
3
4
[root@k8s-node-1 istio]# kubectl get virtualservices
NAME           GATEWAYS   HOSTS                                   AGE
nginx-svc-vs              [nginx-svc.default.svc.cluster.local]   3m1s

  • 测试以及 kiali 中查看
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
# 创建一个 busybox 的 deployment 作为客户端
[root@k8s-node-1 istio]# cat busybox.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: busybox
  labels:
    app: busybox
spec:
  replicas: 1
  selector:
    matchLabels:
      app: busybox
  template:
    metadata:
      labels:
        app: busybox
    spec:
      containers:
        - name: busybox
          image: jicki/busybox-curl
          imagePullPolicy: IfNotPresent
          command: ["/bin/sh", "-c", "sleep 3600s"]
  • 客户端 istio 注入
1
2
kubectl apply -f <(istioctl kube-inject -f busybox.yaml)

1
2
# 访问一下 nginx-svc
[root@k8s-node-1 istio]# kubectl exec -it busybox-7f6578cb8b-qfptk -c busybox -- sh
1
2
3
4
5
6
7
# 带 headers 的访问

curl --header "vs-user: jicki" http://nginx-svc


hello jicki

1
2
3
4
5
6
7
# 模拟流量

while true;
do
wget -q -O - http://nginx-svc;
done

  • 查看 kiali
1
2
3
# 通过 istioctl 打开 kiali

istioctl dashboard kiali

https://jicki.cn/img/posts/istio/virtualservice.png

Istio Gateway

  • 创建 一个基于 Nginx Web 服务的 Istio Gateway
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
apiVersion: networking.istio.io/v1beta1
kind: Gateway
metadata:
  name: nginx-gateway
spec:
  selector:
    istio: ingressgateway # use istio default controller
  servers:
  - port:
      number: 80
      name: http
      protocol: HTTP
    hosts:
    - "*"
---
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: nginx-gw-vs
spec:
  hosts:
  # 不绑定 域名 可使用 *
  - "*"
  gateways:
  - nginx-gateway
  http:
  - route:
    - destination:
        host: nginx-svc
        port:
          number: 80

  • 配置 DestinationRule

    • 目标规则: https://istio.io/latest/zh/docs/reference/config/networking/destination-rule/

    • 通过 svc labels 选择访问

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
apiVersion: networking.istio.io/v1beta1
kind: DestinationRule
metadata:
  name: nginx-destinationrule
spec:
  host: nginx-svc
  subsets:
  - name: nginx-1
    labels:
      web: nginx-1
  - name: nginx-2
    labels:
      web: nginx-2
  - name: nginx-3
    labels:
      web: nginx-3
---
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: nginx-gw-vs
spec:
  hosts:
  - "*"
  gateways:
  - nginx-gateway
  http:
  - route:
    - destination:
        host: nginx-svc
        port:
          number: 80
        subset: nginx-3

  • 基于 TLS 的 Gateway

    • 创建一个 自签 的tls证书
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
# 使用 openssl 创建 根证书 与 私钥  (jicki.cn)
openssl req -x509 -sha256 -nodes -days 365 -newkey rsa:2048 -subj '/O=jicki Inc./CN=jicki.cn' -keyout jicki.cn.key -out jicki.cn.crt

Generating a RSA private key
............+++++
.....+++++
writing new private key to 'jicki.cn.key'
-----

# 输出证书

total 8
-rw-r--r-- 1 root root 1168 Oct 28 06:12 jicki.cn.crt
-rw------- 1 root root 1704 Oct 28 06:12 jicki.cn.key
  • 利用 根证书与密钥 创建 nginx.jicki.cn 证书与私钥
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
openssl req -out nginx.jicki.cn.csr -newkey rsa:2048 -nodes -keyout nginx.jicki.cn.key -subj "/CN=nginx.jicki.cn/O=nginx organization"


Generating a RSA private key
.......................................................................................+++++
........+++++
writing new private key to 'nginx.jicki.cn.key'
-----


# 创建 crt 证书

openssl x509 -req -days 365 -CA jicki.cn.crt -CAkey jicki.cn.key -set_serial 0 -in nginx.jicki.cn.csr -out nginx.jicki.cn.crt



Signature ok
subject=CN = nginx.jicki.cn, O = nginx organization
Getting CA Private Key


# 输出证书

total 20
-rw-r--r-- 1 root root 1038 Oct 28 06:15 nginx.jicki.cn.crt
-rw-r--r-- 1 root root  936 Oct 28 06:14 nginx.jicki.cn.csr
-rw------- 1 root root 1704 Oct 28 06:14 nginx.jicki.cn.key
-rw-r--r-- 1 root root 1168 Oct 28 06:12 jicki.cn.crt
-rw------- 1 root root 1704 Oct 28 06:12 jicki.cn.key

  • 创建 Gateway 中使用到的 Secret

    • 需要将 Secret 创建于 istio-system 这个 namespaces 下.
1
2
kubectl create -n istio-system secret tls nginx-tls --key=nginx.jicki.cn.key --cert=nginx.jicki.cn.crt

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
kubectl -n istio-system get secrets


NAME                                               TYPE                                  DATA   AGE
default-token-pvqnh                                kubernetes.io/service-account-token   3      14d
istio-ca-secret                                    istio.io/ca-root                      5      14d
istio-ingressgateway-service-account-token-jbnvz   kubernetes.io/service-account-token   3      14d
istio-reader-service-account-token-2kwcl           kubernetes.io/service-account-token   3      14d
istiod-service-account-token-n59qq                 kubernetes.io/service-account-token   3      14d
kiali-token-fhwkl                                  kubernetes.io/service-account-token   3      14d
nginx-tls                                          kubernetes.io/tls                     2      8s

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
apiVersion: networking.istio.io/v1beta1
kind: Gateway
metadata:
  name: nginx-gateway
spec:
  selector:
    istio: ingressgateway # use istio default controller
  servers:
  # 每定义一个 hosts 需要多写一个 -port 段落
  - port:
      number: 443
      name: https
      protocol: HTTPS
    tls:
      # 单向 TLS 的模式名称为固定值 SIMPLE  双向 TLS 的模式名称为固定值 MUTUAL
      mode: SIMPLE
      credentialName: nginx-tls  # 上面创建的 证书 secret 名称
    hosts:
    - "nginx.jicki.cn"
---
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: nginx-gw-vs
spec:
  hosts:
  # 不绑定 域名 可使用 *
  - "nginx.jicki.cn"
  gateways:
  - nginx-gateway
  http:
  - route:
    - destination:
        host: nginx-svc
        port:
          number: 80
  • 测试访问
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
curl -v https://nginx.jicki.cn/ --cacert jicki.cn.crt


*   Trying 10.9.9.216:443...
* TCP_NODELAY set
* Connected to nginx.jicki.cn (10.9.9.216) port 443 (#0)
* ALPN, offering h2
* ALPN, offering http/1.1
* successfully set certificate verify locations:
*   CAfile: jicki.cn.crt
  CApath: /etc/ssl/certs
* TLSv1.3 (OUT), TLS handshake, Client hello (1):
* TLSv1.3 (IN), TLS handshake, Server hello (2):
* TLSv1.3 (IN), TLS handshake, Encrypted Extensions (8):
* TLSv1.3 (IN), TLS handshake, Certificate (11):
* TLSv1.3 (IN), TLS handshake, CERT verify (15):
* TLSv1.3 (IN), TLS handshake, Finished (20):
* TLSv1.3 (OUT), TLS change cipher, Change cipher spec (1):
* TLSv1.3 (OUT), TLS handshake, Finished (20):
* SSL connection using TLSv1.3 / TLS_CHACHA20_POLY1305_SHA256
* ALPN, server accepted to use h2
* Server certificate:
*  subject: CN=nginx.jicki.cn; O=nginx organization
*  start date: Oct 28 06:15:47 2021 GMT
*  expire date: Oct 28 06:15:47 2022 GMT
*  common name: nginx.jicki.cn (matched)
*  issuer: O=jicki Inc.; CN=jicki.cn
*  SSL certificate verify ok.
* Using HTTP2, server supports multi-use
* Connection state changed (HTTP/2 confirmed)
* Copying HTTP/2 data in stream buffer to connection buffer after upgrade: len=0
* Using Stream ID: 1 (easy handle 0x55d575b42e10)
> GET / HTTP/2
> Host: nginx.jicki.cn
> user-agent: curl/7.68.0
> accept: */*
>
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
* old SSL session ID is stale, removing
* Connection state changed (MAX_CONCURRENT_STREAMS == 2147483647)!
< HTTP/2 200
< server: istio-envoy
< date: Thu, 28 Oct 2021 06:29:55 GMT
< content-type: text/html
< content-length: 12
< last-modified: Tue, 19 Oct 2021 02:56:01 GMT
< etag: "616e33c1-c"
< accept-ranges: bytes
< x-envoy-upstream-service-time: 15
<
hello jicki
* Connection #0 to host nginx.jicki.cn left intact

Fault Injection

故障注入

  • Istio 的故障注入规则可以帮助您识别微服务中有硬编码超时, 导致 服务失败等。此类异常, 而不会影响最终用户。

  • 故障注入 - 延迟调用, 在使用条件匹配访问 vs-user 用户等于 jicki 的时候 延迟7s 后调用, 延迟比例为 100%

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
# 在 内部网格中实现 故障注入

[root@k8s-node-1 istio]# cat nginx-vs.yaml

apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: nginx-svc-vs
spec:
  # 客户端访问服务的地址
  hosts:
  - nginx-svc
  # http协议
  http:
  # 如下为 故障注入
  - fault:
      delay:
        # 延迟 7秒
        fixedDelay: 7s
        # 延迟比例 100%
        percentage:
          value: 100
  # 如下为匹配条件
    match:
    # http 头 包含如下信息
    - headers:
        # key = vs-user
        vs-user:
          # exact 完全匹配 value = jicki
          exact: jicki
    route:
    - destination:
        host: nginx-svc-3
  # 如下为匹配路由规则
  - route:
    - destination:
        # 匹配的服务版本或子集为 nginx-1
        host: nginx-svc-1
    - destination:
        # 匹配的服务版本或子集为 nginx-2
        host: nginx-svc-2
1
2
3
4
5
6
7
time curl --header "vs-user: jicki" http://nginx-svc


hello jicki
real	0m 7.02s
user	0m 0.00s
sys	0m 0.00s
  • 在 外部调用 中实现 故障注入
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: nginx-gw-vs
spec:
  hosts:
  - "*"
  gateways:
  - nginx-gateway
  http:
  # 如下为 故障注入
  - fault:
      delay:
        # 延迟 7秒
        fixedDelay: 7s
        # 延迟比例 100%
        percentage:
          value: 100
    route:
    - destination:
        host: nginx-svc
        port:
          number: 80
        subset: nginx-3

Traffic Shifting

流量转移

  • 在项目服务中, 通常会有一些新旧版本的逐步迁移, 如流量从微服务的一个版本的逐渐迁移到另一个版本。流量转移适用于web服务以及TCP服务。

    • 通过配置 destination.weight 来定义流量的百分比 (只用于网格内的服务)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: nginx-svc-vs
spec:
  # 客户端访问服务的地址, ( svc名称 + namespace 用于跨 namespace 调用 )
  hosts:
  - nginx-svc.default
  # http协议
  http:
  # 如下为匹配条件
  - match:
    # http 头 包含如下信息
    - headers:
        # key = vs-user
        vs-user:
          # exact 完全匹配 value = jicki
          exact: jicki
    route:
    - destination:
        host: nginx-svc-3.default
  # 如下为匹配路由规则
  - route:
    - destination:
        # 匹配的服务版本或子集为 nginx-1
        host: nginx-svc-1.default
      # 流量比例
      weight: 80
    - destination:
        # 匹配的服务版本或子集为 nginx-2
        host: nginx-svc-2.default
      # 流量比例
      weight: 20

Request Timeouts

请求超时

  • 通过设置 请求超时 来测试服务的一些特性.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: nginx-gw-vs
spec:
  hosts:
  - "*"
  gateways:
  - nginx-gateway
  http:
  - route:
    - destination:
        host: nginx-svc
        port:
          number: 80
        subset: nginx-3
    timeout: 0.01s
  • Nginx 服务会直接返回 upstream request timeout , 这里不需要修改 Nginx 的配置文件设置超时, 通过 vs 配既可实现。

Circuit Breaking

熔断

  • 熔断, 是创建弹性微服务应用程序的重要模式。熔断能够使您的应用程序具备应对来自故障、潜在峰值和其他未知网络因素影响的能力。

  • 通过配置 DestinationRule 中的 trafficPolicy 配置熔断策略

    • 可以配置tcphttp协议的条件, 如下为最大连接数为1, 超过1的时候就会触发 熔断机制
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
apiVersion: networking.istio.io/v1beta1
kind: DestinationRule
metadata:
  name: nginx-destinationrule
spec:
  host: nginx-svc
  trafficPolicy:
    connectionPool:
      tcp:
        maxConnections: 1
      http:
        http1MaxPendingRequests: 1
        maxRequestsPerConnection: 1
    outlierDetection:
      consecutiveErrors: 1
      interval: 1s
      baseEjectionTime: 3m
      maxEjectionPercent: 100
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
apiVersion: v1
kind: Pod
metadata:
  name: fortio
  labels:
    app: fortio
spec:
  containers:
    - name: fortio
      image: fortio/fortio
      imagePullPolicy: IfNotPresent
      args: ["server", "&"]
  • 触发一下熔断
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
kubectl -n jicki exec fortio -c fortio -- /usr/bin/fortio load -c 2 -qps 0 -n 20 -loglevel Warning http://nginx-svc/



09:18:17 I logger.go:127> Log level is now 3 Warning (was 2 Info)
Fortio 1.17.0 running at 0 queries per second, 24->24 procs, for 20 calls: http://nginx-svc/
Starting at max qps with 2 thread(s) [gomax 24] for exactly 20 calls (10 per thread + 0)
09:18:17 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
09:18:17 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
09:18:17 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
09:18:17 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
Ended after 92.685514ms : 20 calls. qps=215.78
Aggregated Function Time : count 20 avg 0.0089015828 +/- 0.004691 min 0.001575415 max 0.02210334 sum 0.178031656
# range, mid point, percentile, count
>= 0.00157541 <= 0.002 , 0.00178771 , 5.00, 1
> 0.002 <= 0.003 , 0.0025 , 15.00, 2
> 0.006 <= 0.007 , 0.0065 , 25.00, 2
> 0.007 <= 0.008 , 0.0075 , 45.00, 4
> 0.008 <= 0.009 , 0.0085 , 55.00, 2
> 0.009 <= 0.01 , 0.0095 , 80.00, 5
> 0.011 <= 0.012 , 0.0115 , 85.00, 1
> 0.012 <= 0.014 , 0.013 , 90.00, 1
> 0.018 <= 0.02 , 0.019 , 95.00, 1
> 0.02 <= 0.0221033 , 0.0210517 , 100.00, 1
# target 50% 0.0085
# target 75% 0.0098
# target 90% 0.014
# target 99% 0.0216827
# target 99.9% 0.0220613
Sockets used: 6 (for perfect keepalive, would be 2)
Jitter: false
Code 200 : 16 (80.0 %)
Code 503 : 4 (20.0 %)
Response Header Sizes : count 20 avg 190.55 +/- 95.28 min 0 max 239 sum 3811
Response Body/Total Sizes : count 20 avg 255.2 +/- 10.03 min 250 max 276 sum 5104
All done 20 calls (plus 0 warmup) 8.902 ms avg, 215.8 qps
  • 当使用 2个 连接的时候 只会触发 Code 503 : 4 (20.0 %)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
kubectl -n jicki exec fortio -c fortio -- /usr/bin/fortio load -c 5 -qps 0 -n 20 -loglevel Warning http://nginx-svc/



09:21:22 I logger.go:127> Log level is now 3 Warning (was 2 Info)
Fortio 1.17.0 running at 0 queries per second, 24->24 procs, for 20 calls: http://nginx-svc/
Starting at max qps with 5 thread(s) [gomax 24] for exactly 20 calls (4 per thread + 0)
09:21:23 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
09:21:23 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
09:21:23 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
09:21:23 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
09:21:23 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
09:21:23 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
09:21:23 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
09:21:23 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
09:21:23 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
09:21:23 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
09:21:23 W http_client.go:793> Parsed non ok code 503 (HTTP/1.1 503)
Ended after 64.311585ms : 20 calls. qps=310.99
Aggregated Function Time : count 20 avg 0.01221322 +/- 0.007708 min 0.003108022 max 0.026839277 sum 0.244264407
# range, mid point, percentile, count
>= 0.00310802 <= 0.004 , 0.00355401 , 10.00, 2
> 0.004 <= 0.005 , 0.0045 , 25.00, 3
> 0.005 <= 0.006 , 0.0055 , 35.00, 2
> 0.009 <= 0.01 , 0.0095 , 40.00, 1
> 0.01 <= 0.011 , 0.0105 , 55.00, 3
> 0.011 <= 0.012 , 0.0115 , 60.00, 1
> 0.012 <= 0.014 , 0.013 , 70.00, 2
> 0.016 <= 0.018 , 0.017 , 80.00, 2
> 0.02 <= 0.025 , 0.0225 , 85.00, 1
> 0.025 <= 0.0268393 , 0.0259196 , 100.00, 3
# target 50% 0.0106667
# target 75% 0.017
# target 90% 0.0256131
# target 99% 0.0267167
# target 99.9% 0.026827
Sockets used: 14 (for perfect keepalive, would be 5)
Jitter: false
Code 200 : 9 (45.0 %)
Code 503 : 11 (55.0 %)
Response Header Sizes : count 20 avg 107.35 +/- 118.7 min 0 max 239 sum 2147
Response Body/Total Sizes : count 20 avg 264.15 +/- 12.31 min 250 max 276 sum 5283
All done 20 calls (plus 0 warmup) 12.213 ms avg, 311.0 qps

  • 配置 5个 连接的时候 Code 503 : 11 (55.0 %)

Mirroring

镜像流量

  • 创建一个 vs 将默认流量都到 nginx-svc-1 中去.
  • 通过 mirror 标签镜像 nginx-svc-1 的流量 到 nginx-svc-2 中. (mirrorPercent 为镜像流量的百分比)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: nginx-svc-vs
spec:
  # 客户端访问服务的地址
  hosts:
  - nginx-svc
  # http协议
  http:
  # 如下为匹配条件
  - match:
    # http 头 包含如下信息
    - headers:
        # key = vs-user
        vs-user:
          # exact 完全匹配 value = jicki
          exact: jicki
    route:
    - destination:
        host: nginx-svc-3
  # 如下为匹配路由规则
  - route:
    - destination:
        # 匹配的服务版本或子集为 nginx-1
        host: nginx-svc-1
      weight: 100
    mirror:
      host: nginx-svc-2
    mirrorPercent: 100
  • 查看 nginx-1nginx-2 的日志 - 可以看出各自的不同.

    • 重点注意这些被镜像的流量是 即发即弃 的, 就是说镜像请求的响应会被丢弃。
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
# nginx-1

127.0.0.1 - - [26/Oct/2021:08:24:20 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "-"
127.0.0.1 - - [26/Oct/2021:08:24:23 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "-"
127.0.0.1 - - [26/Oct/2021:08:24:24 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "-"
127.0.0.1 - - [26/Oct/2021:08:24:25 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "-"
127.0.0.1 - - [26/Oct/2021:08:24:25 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "-"
127.0.0.1 - - [26/Oct/2021:08:24:25 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "-"
127.0.0.1 - - [26/Oct/2021:08:24:26 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "-"
127.0.0.1 - - [26/Oct/2021:08:24:26 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "-"
127.0.0.1 - - [26/Oct/2021:08:24:27 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "-"
127.0.0.1 - - [26/Oct/2021:08:24:27 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "-"
127.0.0.1 - - [26/Oct/2021:08:24:27 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "-"
127.0.0.1 - - [26/Oct/2021:08:24:28 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "-"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
# nginx-2

127.0.0.1 - - [26/Oct/2021:08:24:20 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "172.18.16.252"
127.0.0.1 - - [26/Oct/2021:08:24:23 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "172.18.16.252"
127.0.0.1 - - [26/Oct/2021:08:24:24 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "172.18.16.252"
127.0.0.1 - - [26/Oct/2021:08:24:25 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "172.18.16.252"
127.0.0.1 - - [26/Oct/2021:08:24:25 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "172.18.16.252"
127.0.0.1 - - [26/Oct/2021:08:24:25 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "172.18.16.252"
127.0.0.1 - - [26/Oct/2021:08:24:26 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "172.18.16.252"
127.0.0.1 - - [26/Oct/2021:08:24:26 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "172.18.16.252"
127.0.0.1 - - [26/Oct/2021:08:24:27 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "172.18.16.252"
127.0.0.1 - - [26/Oct/2021:08:24:27 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "172.18.16.252"
127.0.0.1 - - [26/Oct/2021:08:24:27 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "172.18.16.252"
127.0.0.1 - - [26/Oct/2021:08:24:28 +0000] "GET / HTTP/1.1" 200 14 "-" "curl/7.30.0" "172.18.16.252"

FAQ

Istio Proxy Limit

  • 默认 Istio-proxy 资源限制比较低 cpu = 500m memroy = 512Mi

    • 修改 k8s 资源文件 添加: spec.template.metadata.annotations
1
2
3
4
5
6
7

  annotations:
    sidecar.istio.io/proxyCPU: 1000m
    sidecar.istio.io/proxyLimitCPU: 2000m
    sidecar.istio.io/proxyMemory: 1024Mi
    sidecar.istio.io/proxyLimitMemory: 2048Mi

Istio Upgrade

注意事项

  • 升级 Istio 之前, 请确认是否支持升级 istioctl manifest versions 查看支持版本。

  • 升级过程中可能发生流量中断。为了缩短流量中断时间, 请确保每个组件(Citadel 除外)至少运行有两个副本。同时, 确保 PodDistruptionBudgets 配置最小可用性为 1。

  • 确保 istio profile 与 需要升级的版本所配置的 profile 一致。

升级步骤

  • 1. 下载需要升级的 istio 版本 curl -L https://istio.io/downloadIstio | ISTIO_VERSION=1.5.1 sh -

  • 2. 替换 istioctl 二进制文件, 或者 更改 istio 的环境变量PATH路径到新版本的目录中。

  • 3. 如果配置了 istioctl 自动补全,还需要替换为 新的 自动补全脚本。

  • 4. 使用新的 istioctl 导出新版本的 profile 文件 istioctl profile dump demo > demo.yaml

  • 5. 修改 demo.yaml 文件, 将其中 jwtPolicy 身份验证机构修改为 first-party-jwt。Istio 将默认使用第三方令牌。

    • 5.1  验证是否支持 第三方令牌。kubectl get --raw /api/v1 | jq '.resources[] | select(.name | index("serviceaccounts/token"))'

      • 5.1.1 jwtPolicy = third-party-jwt 使用第三方令牌 更安全 Istio 默认使用这个选项。

      • 5.1.2  jwtPolicy = first-party-jwt 使用第一方令牌 属性比较不安全。

  • 6. istioctl upgrade -f demo.yaml 命令进行升级。

  • 7. 观察 kubernetsistio-system 的服务更新完成。

  • 8. 重新注入环境中部署的服务, 用以更新注入数据。

    • 8.1 对于自动注入的情况可使用如下命令:

      • 8.1.1 kubectl rollout restart deployment

      • 8.1.2 kubectl rollout restart statefulset

      • 8.1.3 kubectl rollout restart daemonset

    • 8.2 对于手动注入的情况( 需要重新 apply 一下服务) :

      • 8.2.1 kubectl apply -f <(istioctl kube-inject -f nginx-test.yaml)
  • 9. 检查升级, 执行 istioctl version 检查

    • 9.1 client version 版本是否为新版本。

    • 9.2 control plane version 版本是否为新版本。

    • 9.3 data plane version 中是否全部 proxies 都为新版本。

Istio UnInstall

  • 卸载 Istio 的话其实就是讲 kubernetes 所安装到的组件 delete 掉就可以了
1
2
3
4
5
# 可以直接运行istioctl 命令加上 kubectl delete 命令组合删除

istioctl manifest generate --set profile=demo |kubectl delete -f -
